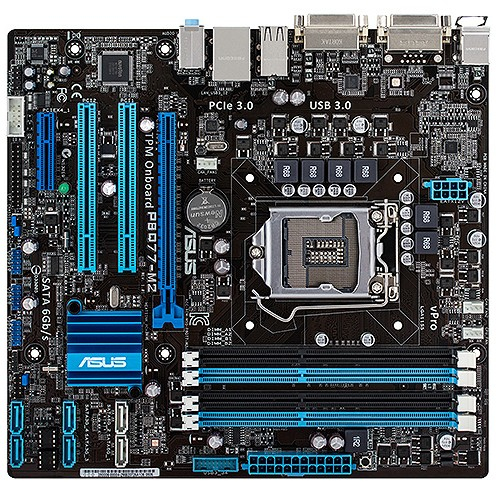

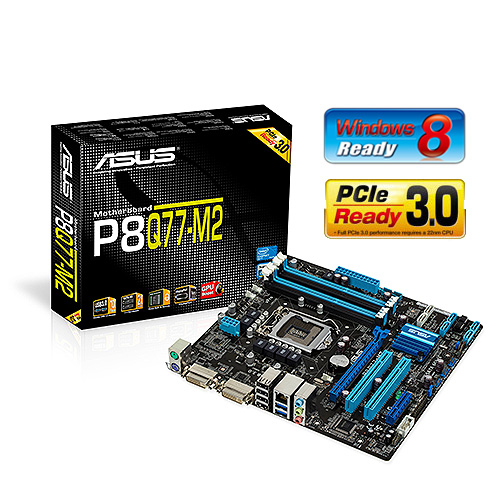

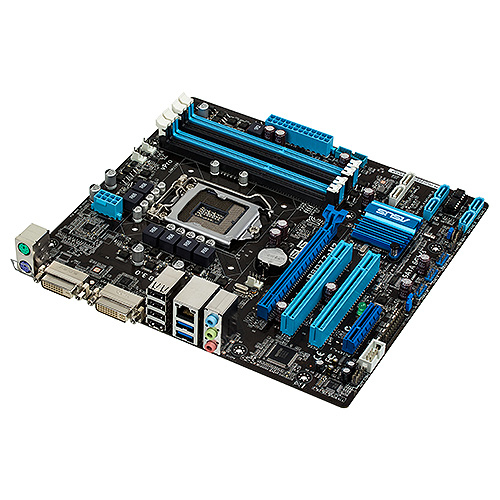

ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX
Model P8Q77-M2Part no. 90-MIBK20-G0EAY0KZ
70 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1748 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1748 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8Q77-M2
- Part number
- 90-MIBK20-G0EAY0KZ
- Also known as
- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1800,2000,2200 MHz |
| Maximum internal memory | 32 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1748 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Maximum resolution | 1920 x 1200 pixels |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

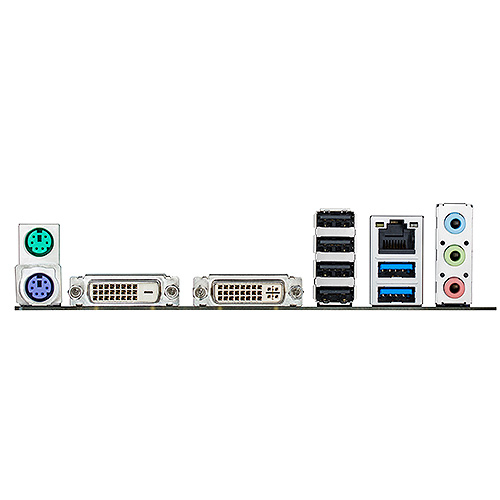

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82579 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q77 Express |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express configurations | 1x4, 1x16 |
| PCI Express slots version | 2.0, 3.0 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 2.0a |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Antivirus |
| Bundled software | ASUS Utilities ASUS Update |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel Q77 |
| Audio output | 3 |
| Intel® vPro™ Platform Eligibility | Yes |
| PCI Express slots quantity | 2 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX vsASUS P8Z77-I DELUXE/WDCompare specs

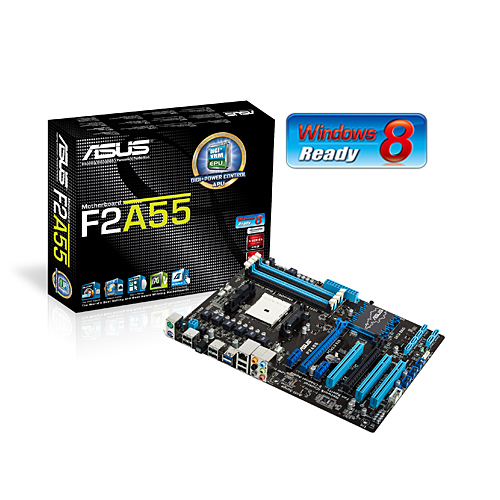

- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX vsASUS F2A55 AMD A55 Socket FM2 ATXCompare specs
- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX vsASUS P8H61-M LX3 R2.0Compare specs
- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX vsASUS Z9PA-U8 motherboard Intel® C602 LGA 2011 (Socket R) ATXCompare specs
- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-78LMT-USB3 (rev. 4.1)Compare specs

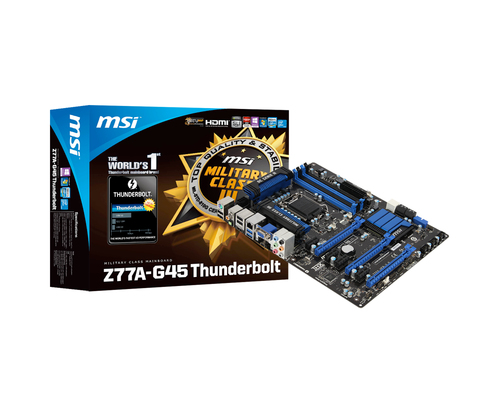

- ASUS P8Q77-M2 Intel® Q77 Express LGA 1155 (Socket H2) micro ATX vsMSI Z77A-G45 ThunderboltCompare specs
