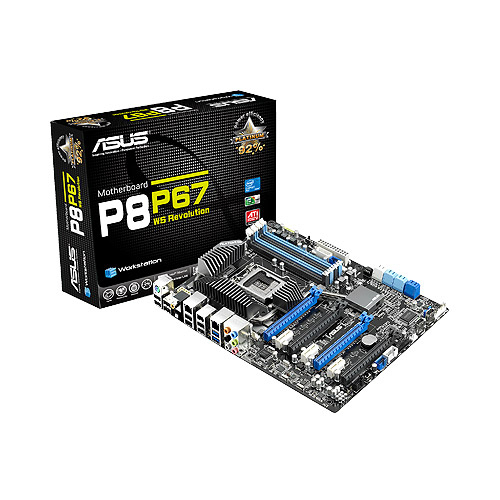

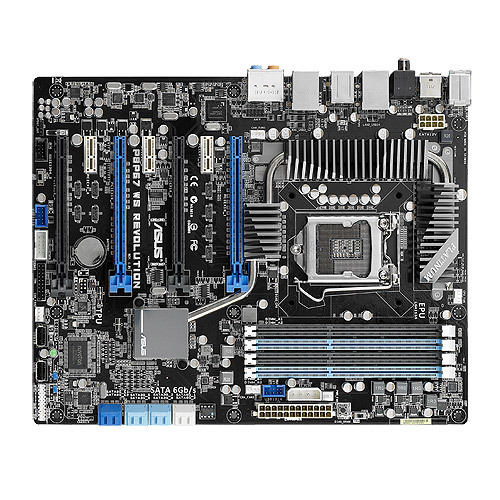

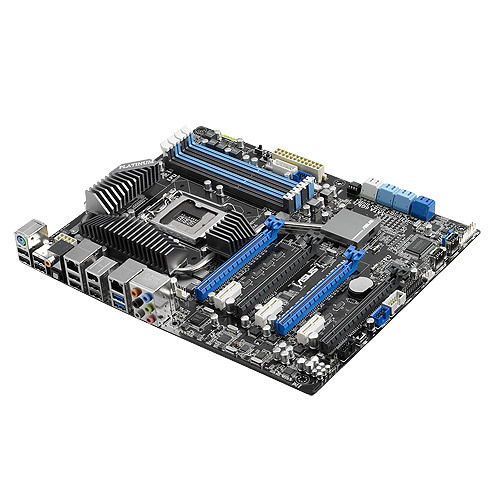

ASUS P8P67 WS Revolution
Model P8P67 WS RevolutionPart no. 90-MSVDA0-G0EAY00ZEAN 4719543179888
40 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots4
- RAID levels0, 1, 5, 10
- On-board graphics cardYes
- USB 2.0 connectors6
- USB 2.0 ports quantity8
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- Yes
- USB 2.0 connectors
- 6
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8P67 WS Revolution
- Part numbers
- 90-MSVDA0-G0EAY00Z, 90-MSVDAA-G0EAY0YZ, P8P67 WS REVOLUTION, 90-MSVDAA-G0UAY00Z
- EAN / UPC
- 4719543179888, 4719543178300
- Also known as
- ASUS P8P67 WS Revolution LGA 1155 (Socket H2) ATX
Specifications
40 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| TPM connector | Yes |

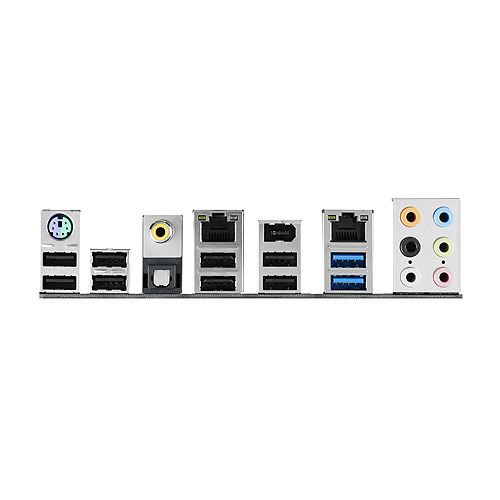

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | GbE LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7, Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
What people say
Reviews & ratings
ASUS P8P67 WS Revolution
No reviews yet
Be the first to tell others how ASUS P8P67 WS Revolution works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8P67 WS Revolution

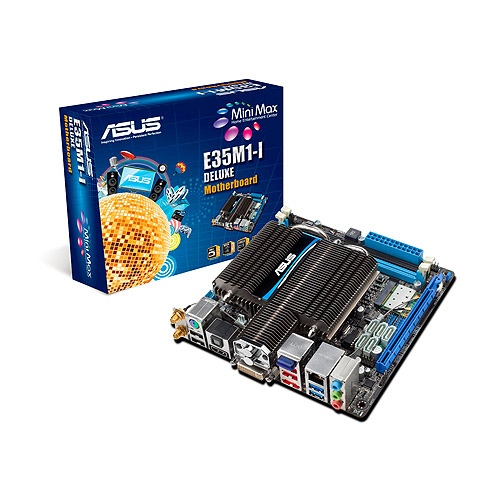

All motherboard comparisons- ASUS P8P67 WS Revolution vsASUS E35M1-I DELUXECompare specs

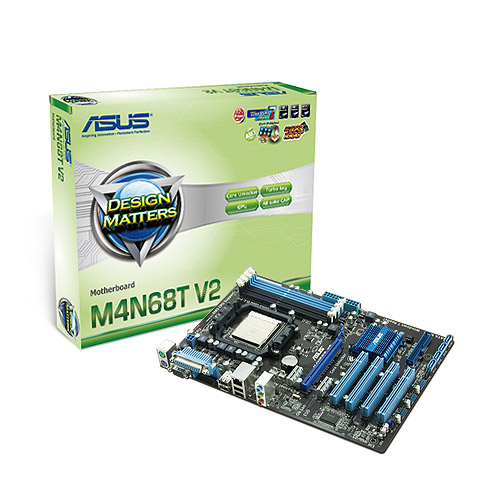

- ASUS P8P67 WS Revolution vsASUS M4N68T V2Compare specs
