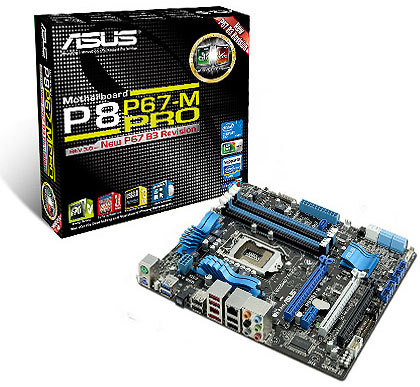

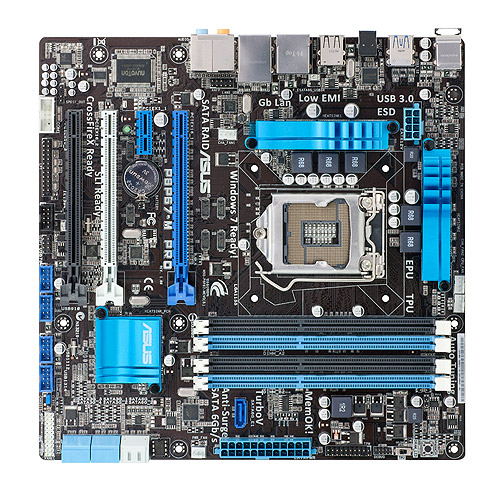

ASUS P8P67-M PRO R3.0

ASUS P8P67-M PRO R3.0

Model P8P67-M PRO R3.0

57 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • On-board graphics cardNo
  • USB 2.0 connectors8
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
On-board graphics card
No
USB 2.0 connectors
8
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
P8P67-M PRO R3.0
Part number
P8P67-M PRO R3.0
Also known as
ASUS P8P67-M PRO R3.0 motherboard LGA 1155 (Socket H2) micro ATX

Specifications

57 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133,2200 MHz
Maximum internal memory32 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI
On-board graphics cardNo

Internal I/O

USB 2.0 connectors8
Number of SATA connectors7
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of COM connectors1
Number of IEEE1394 connectors1

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs5
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wake-on-LAN readyYes
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots3
PCI Express slots version2.0

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Quick installation guideYes
Special featuresMemOK!
