ASUS P8P67-M LGA 1155 (Socket H2) micro ATX
Model P8P67-MPart no. 90-MIBDV0-G0EAY0DZEAN 4719543177945
40 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots4
- On-board graphics cardNo
- USB 2.0 connectors6
- LAN controllerRealtek RTL8111E
- Motherboard form factormicro ATX
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 4
- On-board graphics card
- No
- USB 2.0 connectors
- 6
- LAN controller
- Realtek RTL8111E
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8P67-M
- Part numbers
- 90-MIBDV0-G0EAY0DZ, P8P67-M, P8P67-M (REV 3.0)
- EAN / UPC
- 4719543177945
- Also known as
- ASUS P8P67-M LGA 1155 (Socket H2) micro ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

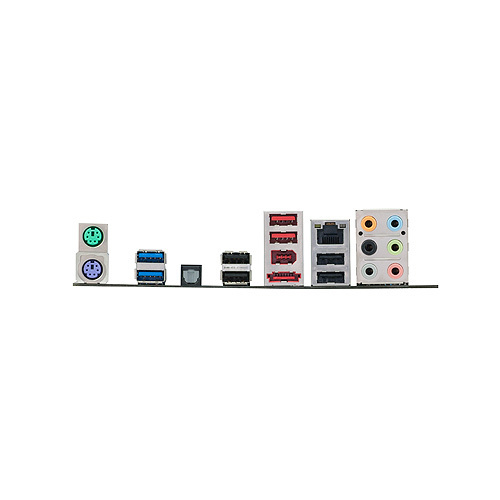

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 244 mm |
