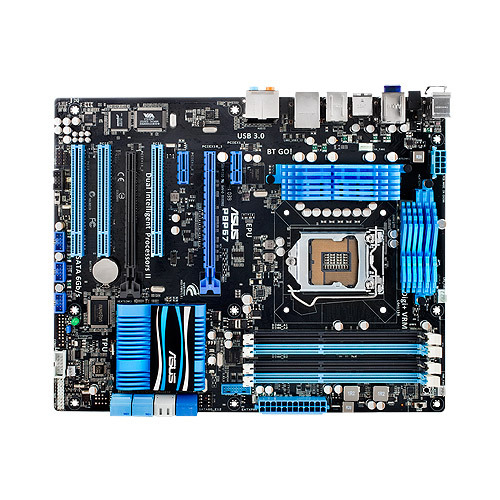

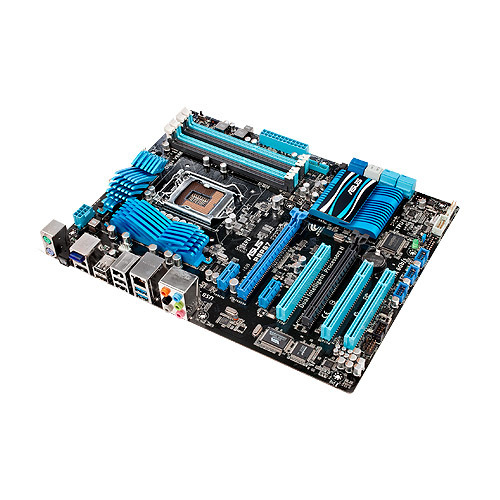

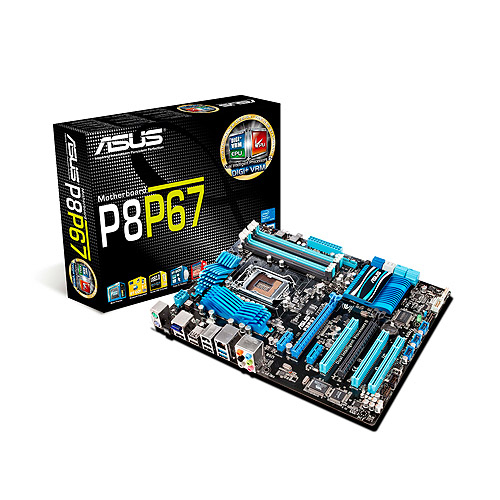

ASUS P8P67 LGA 1155 (Socket H2) ATX
Model P8P67Part no. 90-MIBE40-G0EAY0KZEAN 4719543179697
42 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots4
- RAID levels0, 1, 5, 10
- On-board graphics cardNo
- USB 2.0 connectors6
- LAN controllerRealtek RTL8111E
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- No
- USB 2.0 connectors
- 6
- LAN controller
- Realtek RTL8111E
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8P67
- Part numbers
- 90-MIBE40-G0EAY0KZ, 90-MIBE4A-G0EAY0DZ, P8P67 (REV 3.0)
- EAN / UPC
- 4719543179697, 610839177912, 4719543177914
- Also known as
- ASUS P8P67 LGA 1155 (Socket H2) ATX
Specifications
42 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |

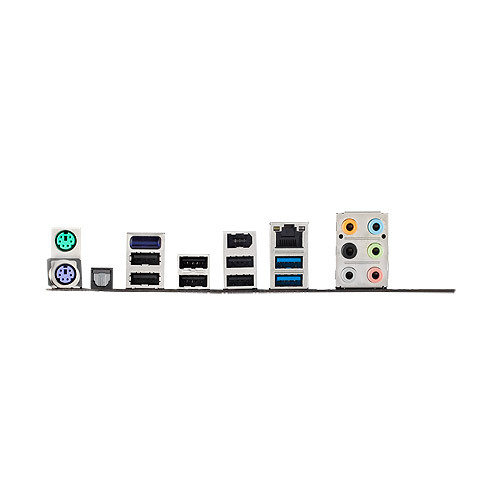

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Bluetooth v2.1 + EDR |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS Update ASUS Utilities |
Other features
| Specification | Value |
|---|---|
| Manageability features | WfM 2.0, DMI 2.0, WOL @ PME, WOR @ PME, PXE |
What people say
Reviews & ratings
ASUS P8P67 LGA 1155 (Socket H2) ATX
No reviews yet
Be the first to tell others how ASUS P8P67 LGA 1155 (Socket H2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8P67 LGA 1155 (Socket H2) ATX
All motherboard comparisons- ASUS P8P67 LGA 1155 (Socket H2) ATX vsASUS KCMA-D8 motherboard AMD SR5670 Socket F (1207) Extended ATXCompare specs
- ASUS P8P67 LGA 1155 (Socket H2) ATX vsASUS P8P67 LECompare specs

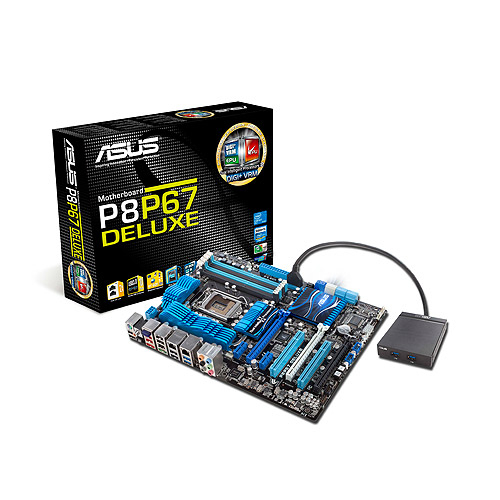

- ASUS P8P67 LGA 1155 (Socket H2) ATX vsASUS P8P67 DELUXECompare specs

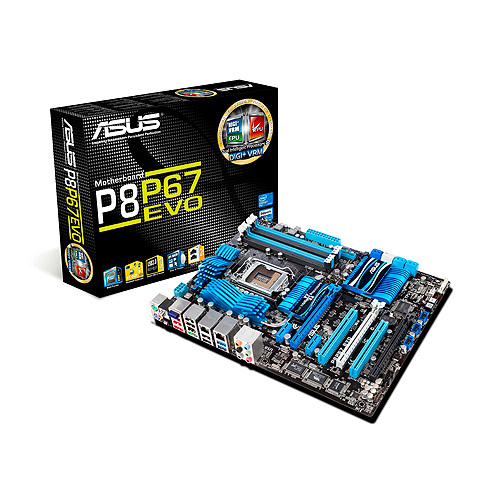

- ASUS P8P67 LGA 1155 (Socket H2) ATX vsASUS P8P67 EVOCompare specs

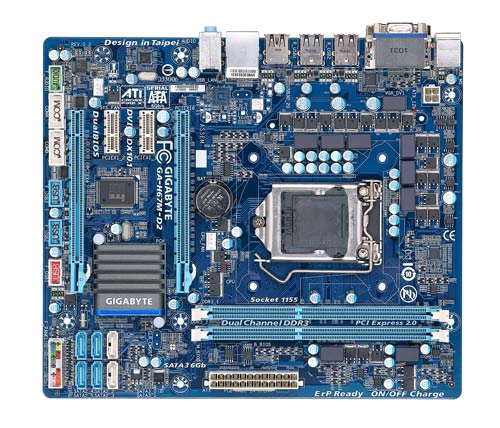

- ASUS P8P67 LGA 1155 (Socket H2) ATX vsGIGABYTE GA-H67M-D2 motherboard LGA 1155 (Socket H2) micro ATXCompare specs

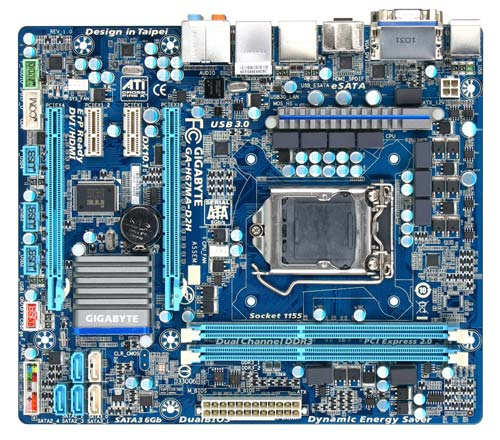

- ASUS P8P67 LGA 1155 (Socket H2) ATX vsGIGABYTE GA-H67MA-D2H motherboard LGA 1155 (Socket H2) micro ATXCompare specs

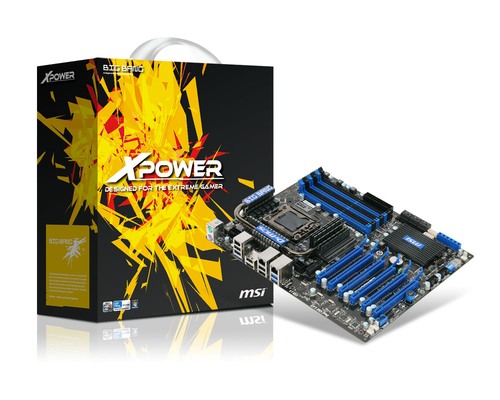

- ASUS P8P67 LGA 1155 (Socket H2) ATX vsMSI Big Bang-XPoweCompare specs

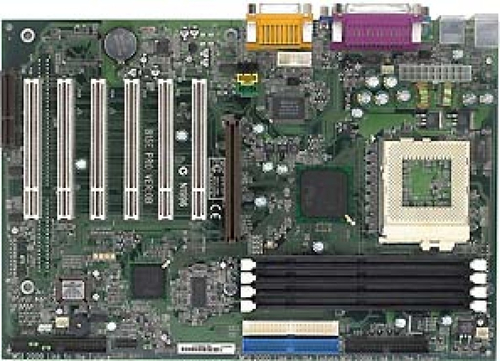

- ASUS P8P67 LGA 1155 (Socket H2) ATX vsMSI 815E ProCompare specs
