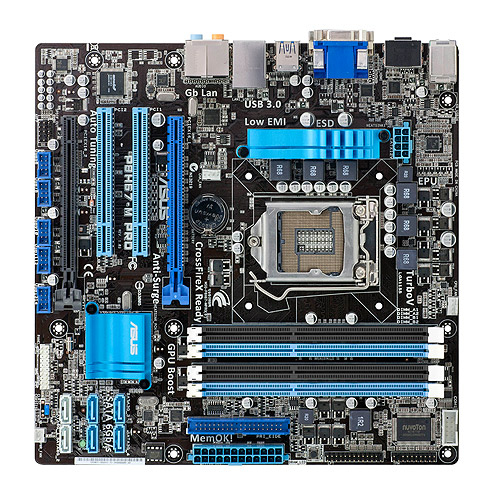

ASUS P8H67-M PRO/CSM
Model P8H67-M PRO/CSM
42 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Parallel processing technology supportNot supported
- USB 2.0 connectors10
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111E
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 10
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111E
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H67-M PRO/CSM
- Part number
- P8H67-M PRO/CSM
- Also known as
- ASUS P8H67-M PRO/CSM motherboard Intel® H67 LGA 1155 (Socket H2)
Specifications
42 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 8GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 10 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H67 |
| Audio chip | Realtek ALC892 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
