ASUS P8H67-I PRO

ASUS P8H67-I PRO

Model P8H67-I PROPart no. 90-MIBHN0-G0EAY0KZEAN 5711045715938

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • Maximum graphics card memory1748 MB
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
Maximum graphics card memory
1748 MB
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P8H67-I PRO
Part numbers
90-MIBHN0-G0EAY0KZ, P8H67-I PRO
EAN / UPC
5711045715938
Also known as
ASUS P8H67-I PRO Intel® H67 LGA 1155 (Socket H2) mini ITX

Specifications

61 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory8 GB
Supported memory module capacities1GB, 2GB, 4GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1748 MB
Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors2
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

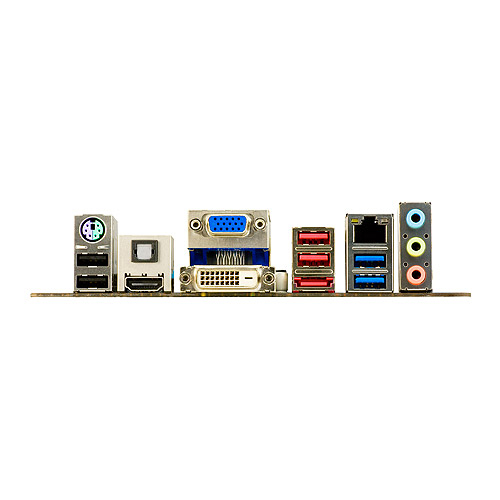

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
Headphone outputs3
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H67
Audio chipRealtek ALC892
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX
Overclocking featuresGPU Boost

Expansion slots

PCI Express x16 slots1
PCI Express slots version2.0

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width171 mm
Depth171 mm

Packaging content

Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS Update ASUS Utilities

Other features

Internal memory typeSO-DIMM
Quick installation guideYes
