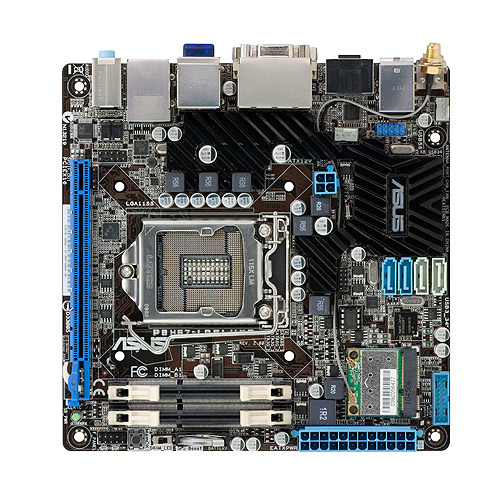

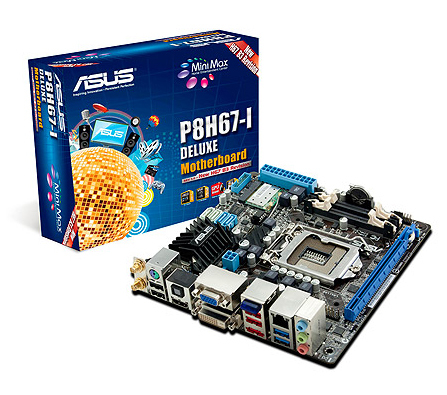

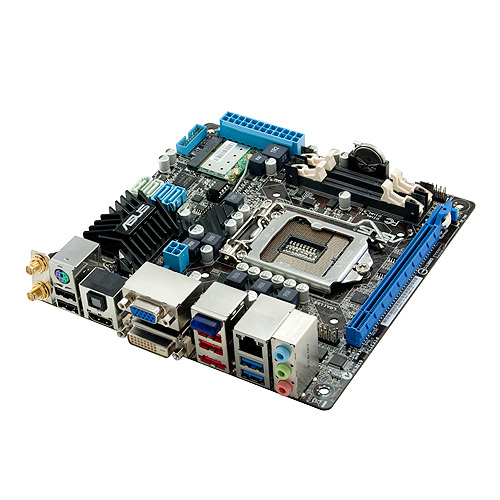

ASUS P8H67-I DELUXE REV3.0

ASUS P8H67-I DELUXE REV3.0

Model P8H67-I DELUXE REV3.0Part no. P8H67-I DELUXE REV3EAN 610839179374

51 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors1
  • USB 2.0 ports quantity4
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
1
USB 2.0 ports quantity
4
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8H67-I DELUXE REV3.0
Part numbers
P8H67-I DELUXE REV3, P8H67-I DELUXE REV 3.0
EAN / UPC
610839179374
Also known as
ASUS P8H67-I DELUXE REV3.0 Intel® H67 LGA 1155 (Socket H2) mini ITX

Specifications

51 specifications in 10 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1

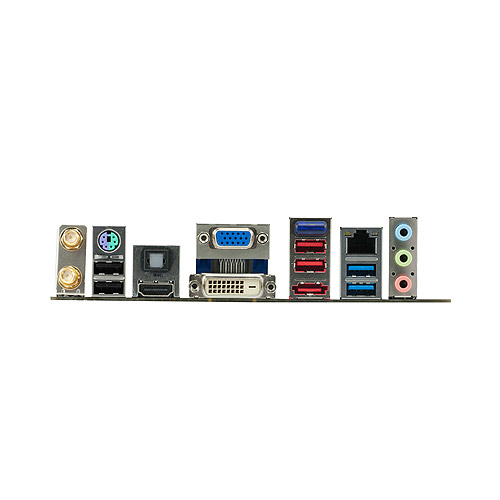

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs2
Microphone inYes
S/PDIF out portYes
WiFi-AP antenna jack2

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormini ITX
Motherboard chipsetIntel® H67
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
CertificationRoHS

Expansion slots

PCI Express x16 slots1
PCI Express slots version2.0

BIOS

BIOS typeAMI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width171 mm
Depth171 mm
