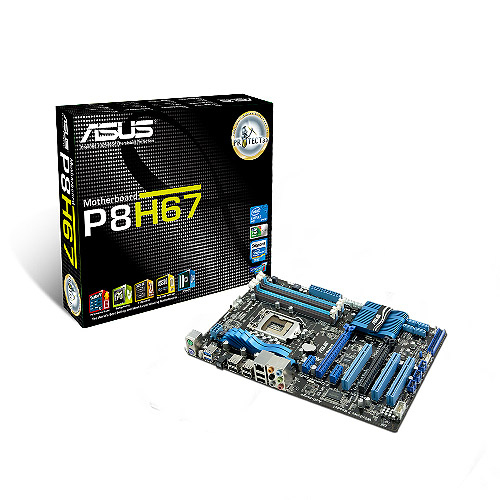

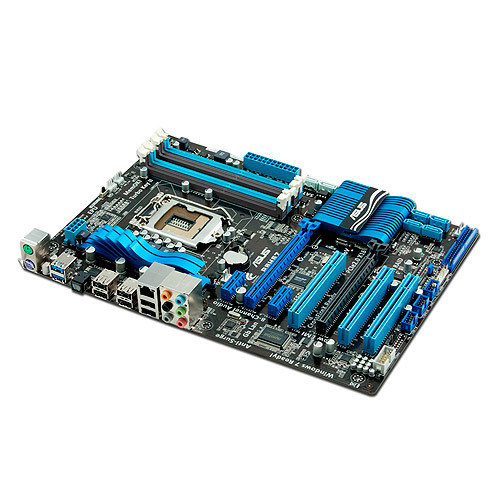

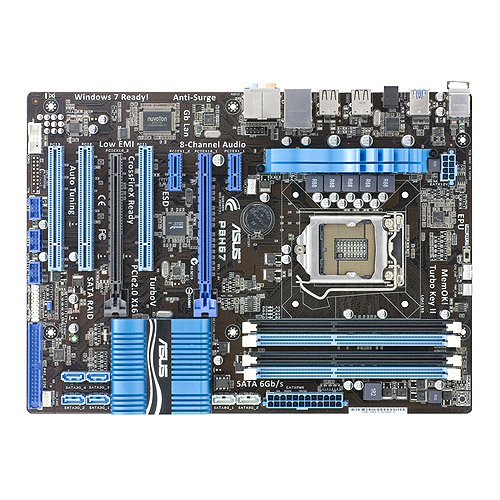

ASUS P8H67 LGA 1155 (Socket H2) ATX
Model P8H67Part no. 90-MIBE00-G0EAY0GZEAN 4719543177983
50 specifications
- Processor socketLGA 1155 (Socket H2)
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Parallel processing technology supportQuad-GPU CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity6
Overview
- Processor socket
- LGA 1155 (Socket H2)
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Parallel processing technology support
- Quad-GPU CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H67
- Part numbers
- 90-MIBE00-G0EAY0GZ, P8H67, P8H67 ( REV3.0)
- EAN / UPC
- 4719543177983, 610839177981
- Also known as
- ASUS P8H67 LGA 1155 (Socket H2) ATX
Specifications
50 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1155 (Socket H2) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Quad-GPU CrossFireX |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

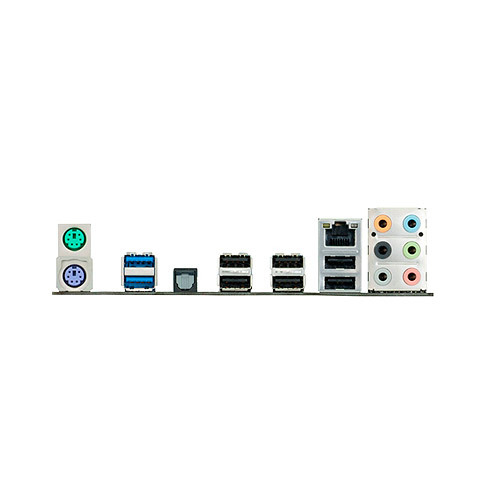

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 221 mm |

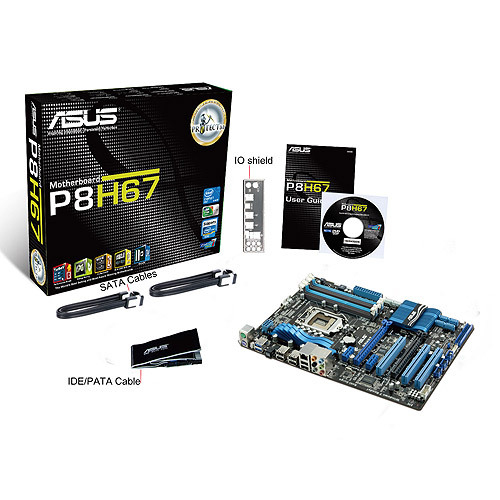

Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | VIA VT6415 PATA |
| Controller interface type | Intel H67 Express |
