ASUS P8H61-V Intel® H61 LGA 1155 (Socket H2) ATX
Model P8H61-VPart no. 90-MIBG00-G0JAY0KZEAN 4719543180938
56 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- Ethernet interface typeGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Ethernet interface type
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H61-V
- Part numbers
- 90-MIBG00-G0JAY0KZ, 90-MIBG00-G0EAY0KZ
- EAN / UPC
- 4719543180938
- Also known as
- ASUS P8H61-V Intel® H61 LGA 1155 (Socket H2) ATX
Specifications
56 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Parallel connector | Yes |

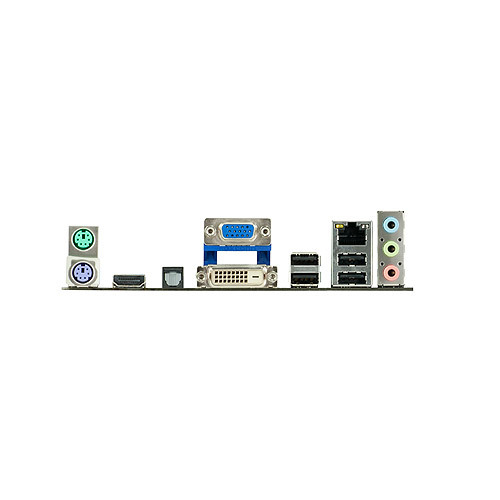

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 203 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Trial software | Antivirus |
| Bundled software | ASUS utilities ASUS Update |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
