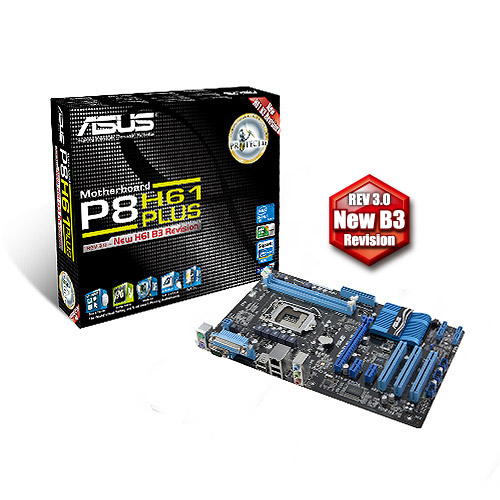

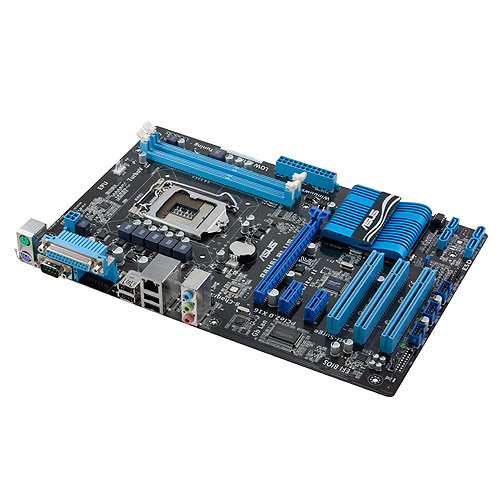

ASUS P8H61 PLUS

ASUS P8H61 PLUS

Model P8H61 PLUSPart no. P8H61 PLUS <REV.3.0>

54 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • LAN controllerRealtek RTL8111E
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
LAN controller
Realtek RTL8111E
Brand
ASUS
Category
Motherboard
Model
P8H61 PLUS
Part numbers
P8H61 PLUS <REV.3.0>, P8H61 PLUS(REV 3.0), P8H61 PLUS B3
Also known as
ASUS P8H61 PLUS Intel® H61 LGA 1155 (Socket H2) ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

LAN controllerRealtek RTL8111E
Networking featuresGigabit LAN

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Overclocking featuresPrecision Tweaker - vCore: adjustable CPU voltage at 0.01V increment – vCCIO: adjustable I/O voltage at 0.005V increment - vDRAM Bus: 190-step DRAM voltage control - vPCH: 190-step chipset voltage control SFS (Stepless Frequency Selection) - BCLK/PEG frequency tuning from 80MHz up to 300MHz at 1MHz

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots3

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth203 mm

Packaging content

Drivers includedYes
Trial softwareAnti-virus software (OEM version)
Bundled softwareASUS Update ASUS Utilities

Other features

Quick installation guideYes
Manageability featuresWOL by PME,WOR by PME,PXE
