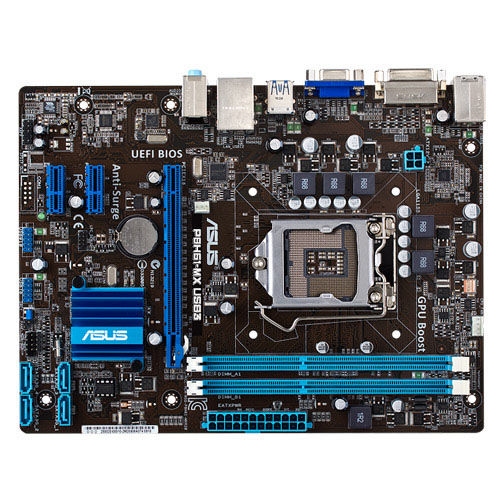

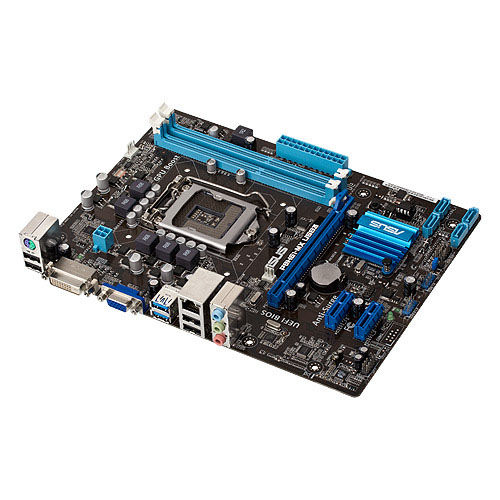

ASUS P8H61-MX USB3

ASUS P8H61-MX USB3

Model P8H61-MX USB3Part no. 90-MIBJF0-G0EAY0DZEAN 4719543181805

75 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P8H61-MX USB3
Part numbers
90-MIBJF0-G0EAY0DZ, P8H61-MX USB3
EAN / UPC
4719543181805, 610839187010, 5053460658187
Also known as
ASUS P8H61-MX USB3 Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

75 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1
System bus rate5 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1800,2000,2133,2200 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA, SATA II

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2048 x 1536 pixels
HDCPYes
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of SATA connectors4
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1

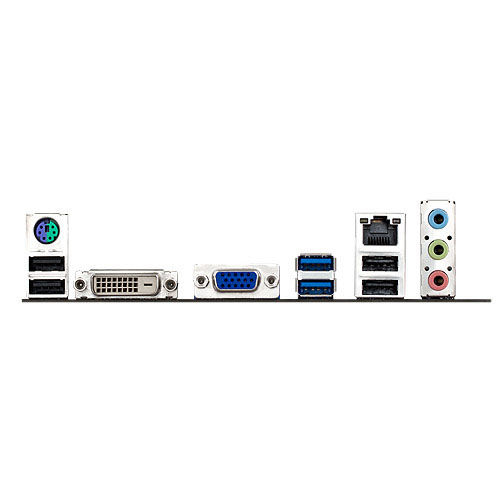

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs3
Microphone inYes
Parallel ports quantity0

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8111F
Wake-on-LAN readyYes
Wi-FiNo
BluetoothNo
Networking featuresGigabit LAN

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipVIA VT1708S
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express configurations1x16
PCI Express slots version2.0, 3.0

BIOS

BIOS typeEFI AMI
BIOS memory size64 Mbit
ACPI version2.0a
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth183 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Dual Link DVIYes
Quick installation guideYes
Special features2 x Thunderbolt
