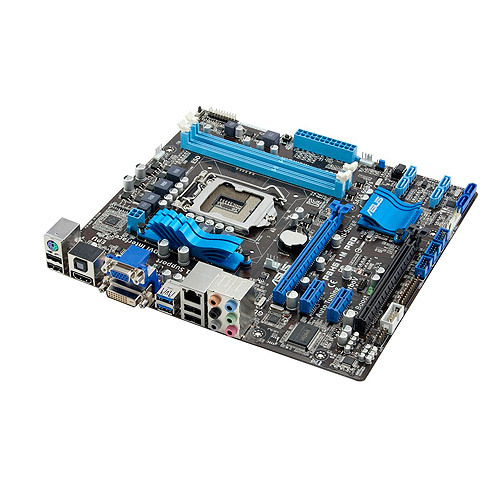

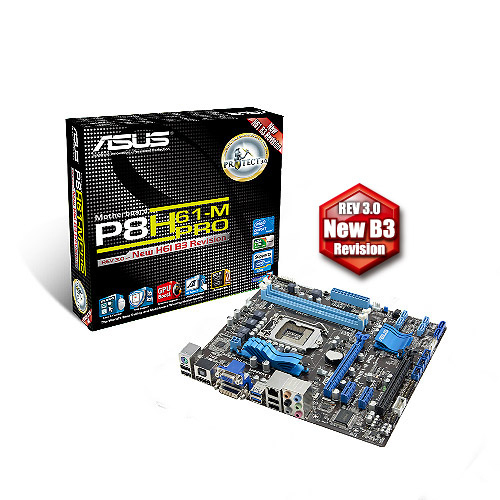

ASUS P8H61-M PRO

ASUS P8H61-M PRO

Model P8H61-M PROPart no. P8H61-M PRO <REV.3.0EAN 610839179190

54 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • LAN controllerRealtek RTL8111E
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
LAN controller
Realtek RTL8111E
Brand
ASUS
Category
Motherboard
Model
P8H61-M PRO
Part numbers
P8H61-M PRO <REV.3.0, P8H61-M PRO
EAN / UPC
610839179190
Also known as
ASUS P8H61-M PRO Intel® H61 LGA 1155 (Socket H2)

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities2GB, 4GB, 8GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs5
Microphone inYes
S/PDIF out portYes

Network

LAN controllerRealtek RTL8111E
Networking featuresGigabit LAN

Features

Component forPC
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX
Overclocking featuresSFS (Stepless Frequency Selection) Internal Base Clock tuning from 80MHz up to 300MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth229 mm

Packaging content

Drivers includedYes
Trial softwareAnti-virus software (OEM version)
Bundled softwareASUS Update ASUS Utilities

Other features

Quick installation guideYes
