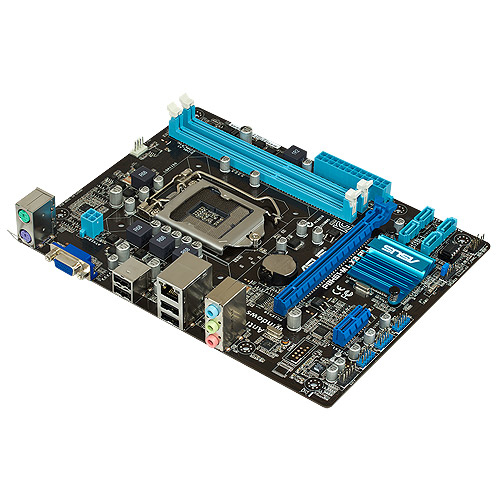

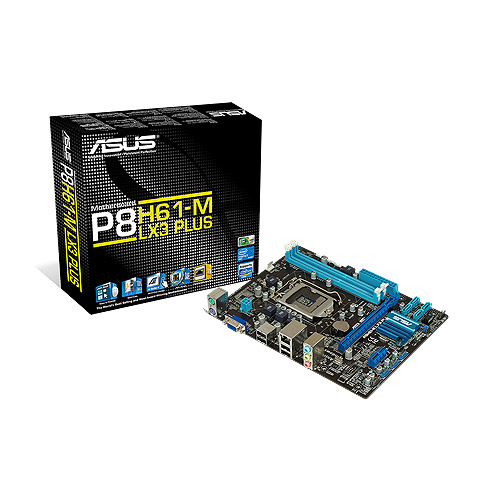

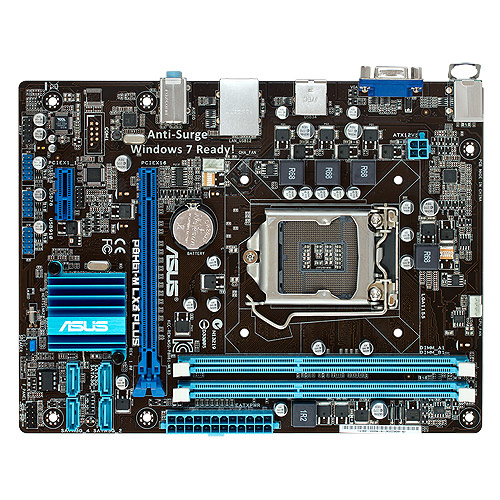

ASUS P8H61-M LX3 PLUS

ASUS P8H61-M LX3 PLUS

Model P8H61-M LX3 PLUSPart no. 90-MIBIJ0-G0EAY0MZEAN 4719543186121

61 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory1748 MB
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
1748 MB
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P8H61-M LX3 PLUS
Part numbers
90-MIBIJ0-G0EAY0MZ, P8H61-M LX3 PLUS, P8H61-M/LX3-PLU
EAN / UPC
4719543186121
Also known as
ASUS P8H61-M LX3 PLUS Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

61 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Maximum graphics card memory1748 MB
Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel
Graphics cardHD Graphics
Maximum resolution2048 x 1536 pixels
Discrete graphics supportYes

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes

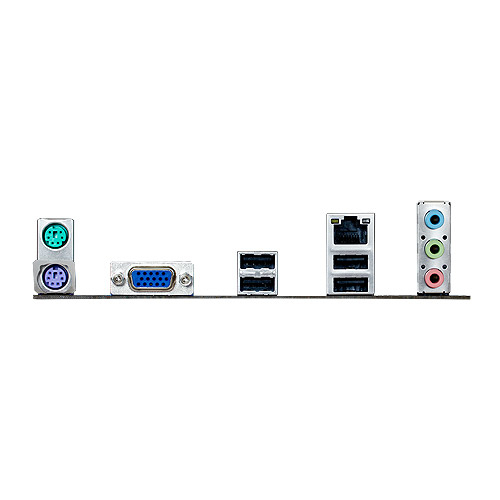

Rear panel I/O ports

USB 2.0 ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111F
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipVIA VT1708S
Audio output channels7.1 channels
Cooling typePassive
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express configurations1x1, 1x16
PCI Express slots version2.0

BIOS

BIOS typeUEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width226 mm
Depth173 mm

Packaging content

Cables includedSATA
Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS Utilities ASUS Update

Other features

Controller interface typeIntel H61(B3)
Audio output3
PCI Express slots quantity2
