ASUS P8H61-M LX2

ASUS P8H61-M LX2

Model P8H61-M LX2

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
P8H61-M LX2
Part number
P8H61-M LX2
Also known as
ASUS P8H61-M LX2 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory8 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA

Graphics

Graphics card familyIntel
Maximum resolution2048 x 1536 pixels

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of COM connectors1
TPM connectorYes

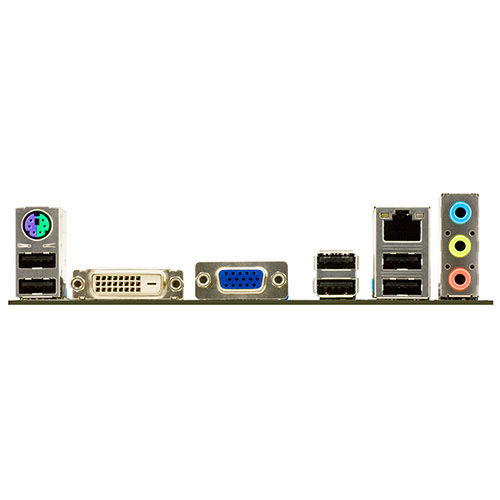

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wake-on-LAN readyYes

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio chipVIA VT1708S
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeEFI
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth198 mm

Packaging content

Cables includedSATA

Other features

Quick installation guideYes
