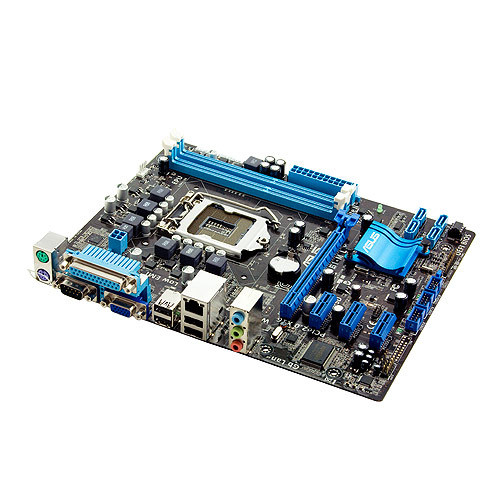

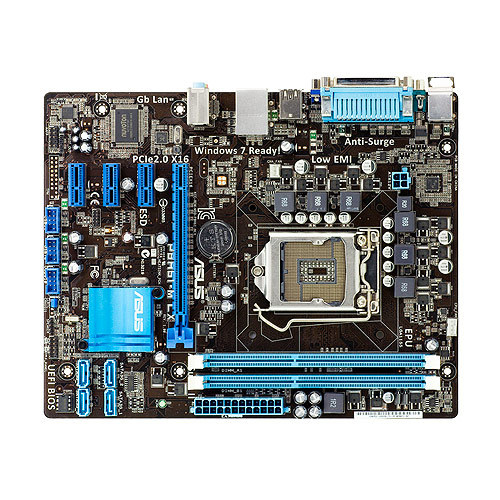

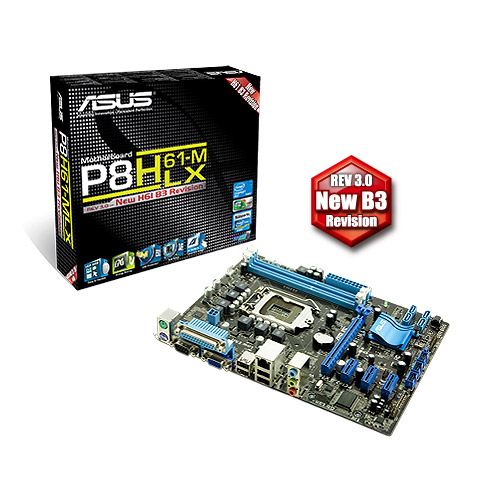

ASUS P8H61-M LX Rev 3.0
Model P8H61-M LX Rev 3.0Part no. 90-MIBGF0-G0EAY0KZEAN 4719543181478
61 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H61-M LX Rev 3.0
- Part number
- 90-MIBGF0-G0EAY0KZ
- EAN / UPC
- 4719543181478, 4719543181485
- Also known as
- ASUS P8H61-M LX Rev 3.0 Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
61 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | Intel |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Certification | RoHS |
| Overclocking features | ASUS C.P.R.(CPU Parameter Recall) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 193 mm |

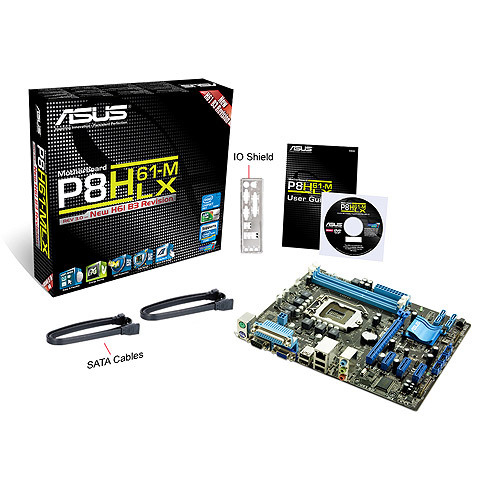

Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Anti-virus |
| Bundled software | ASUS utilities ASUS Update |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel H61(B3) |
| Quick installation guide | Yes |
| Special features | ASUS EPU: - EPU ASUS Exclusive Features: - AI Suite II - Ai Charger - Anti-Surge - Low EMI Solution - ESD Guards - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree |
