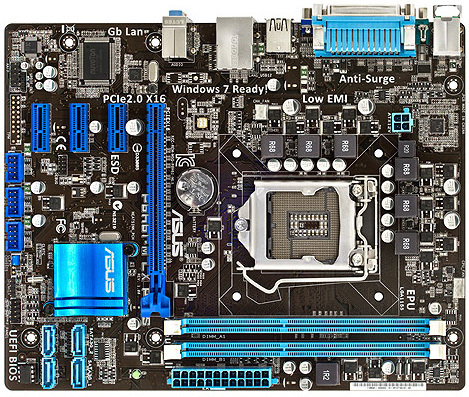

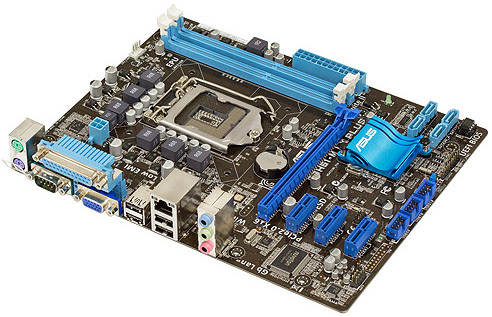

ASUS P8H61-M LX PLUS

ASUS P8H61-M LX PLUS

Model P8H61-M LX PLUSEAN 610839182152

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
ASUS
Category
Motherboard
Model
P8H61-M LX PLUS
Part number
P8H61-M LX PLUS
EAN / UPC
610839182152
Also known as
ASUS P8H61-M LX PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

51 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,2133 MHz
Maximum internal memory16 GB
Supported memory module capacities2GB, 4GB, 8GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes

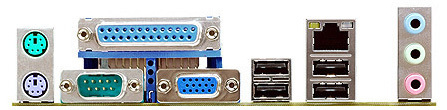

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
COM ports quantity1
Parallel ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H61
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots1
PCI Express slots version2.0

BIOS

BIOS typeAMI
BIOS memory size32 Mbit
ACPI version2.0

Weight & dimensions

Width244 mm
Depth193 mm

Packaging content

Drivers includedYes

Other features

Quick installation guideYes
