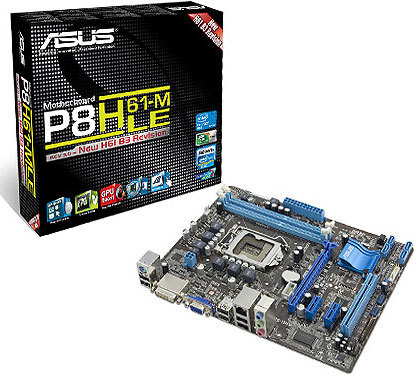

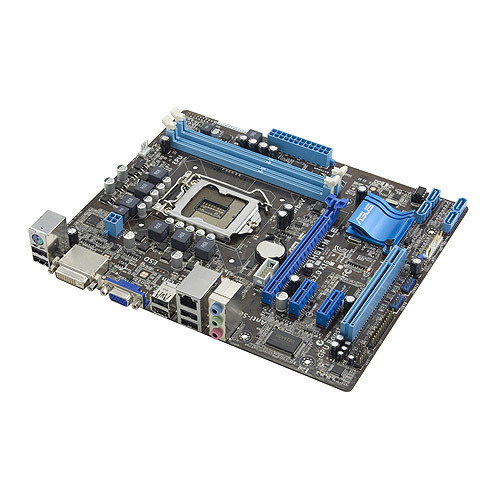

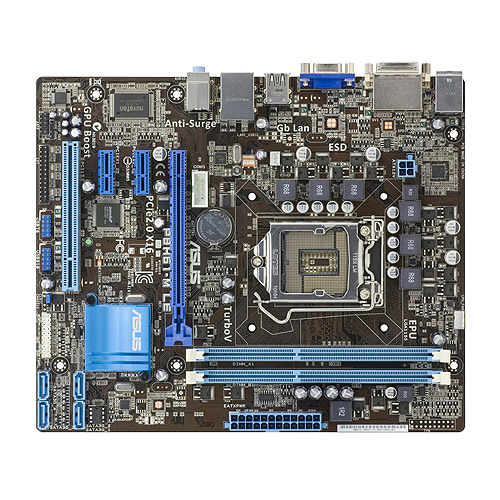

ASUS P8H61-M LE R3.0

ASUS P8H61-M LE R3.0

Model P8H61-M LE R3.0

56 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors4
  • USB 2.0 ports quantity6
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
4
USB 2.0 ports quantity
6
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8H61-M LE R3.0
Part number
P8H61-M LE R3.0
Also known as
ASUS P8H61-M LE R3.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

56 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Number of memory slots2
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB
Supported memory module capacities1GB, 2GB, 4GB, 8GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes
Graphics card familyIntel

Internal I/O

USB 2.0 connectors4
Number of SATA connectors2
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of COM connectors1

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
DVI-I ports quantity0
Headphone outputs2
Microphone inYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Wake-on-LAN readyYes
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth203 mm

Other features

Dual Link DVIYes
