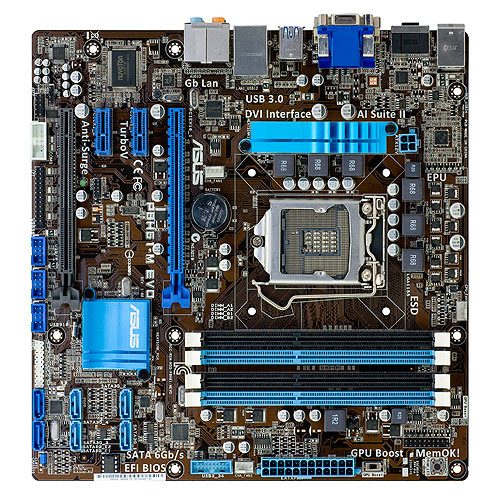

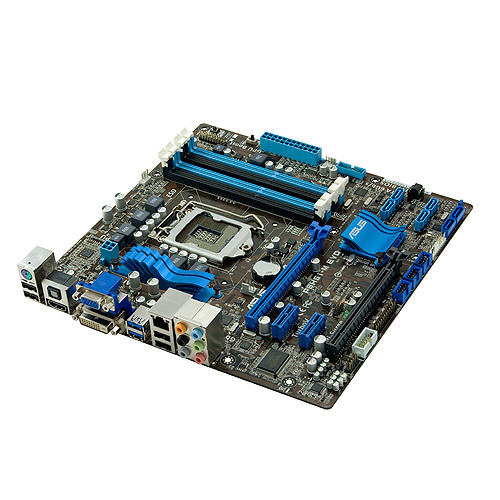

ASUS P8H61-M EVO

ASUS P8H61-M EVO

Model P8H61-M EVOPart no. 90-MIBG90-G0EAY0DZEAN 4719543181027

54 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • Ethernet interface typeGigabit Ethernet
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
Parallel processing technology support
Not supported
USB 2.0 connectors
3
Ethernet interface type
Gigabit Ethernet
Component for
PC
Brand
ASUS
Category
Motherboard
Model
P8H61-M EVO
Part number
90-MIBG90-G0EAY0DZ
EAN / UPC
4719543181027
Also known as
ASUS P8H61-M EVO Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Maximum number of SMP processors1

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory16 GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardYes

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors2
Number of SATA II connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of COM connectors1
Parallel connectorYes
TPM connectorYes

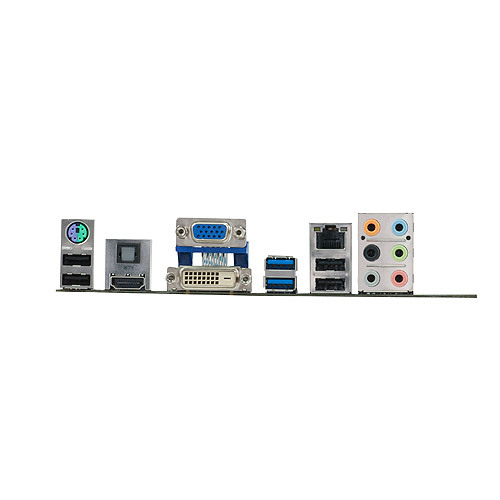

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs5
Microphone inYes
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2

BIOS

BIOS typeAMI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Drivers includedYes
Trial softwareAntivirus
Bundled softwareASUS utilities ASUS Update

Other features

Quick installation guideYes
