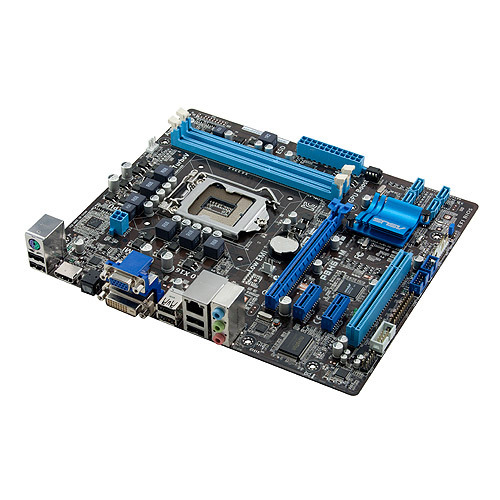

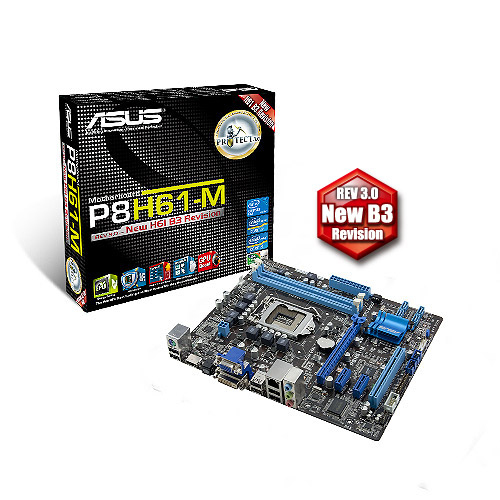

ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX
Model P8H61-MEAN 6108391789888
69 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Supported storage drive interfacesSATA II
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity6
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 6
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H61-M
- Part numbers
- P8H61-M, P8H61-M REV 3.0, 90-MIBF20-G0EAY00Z, P8H61-M <REV.3.0>, P8H61-M <REV 3.0>
- EAN / UPC
- 6108391789888, 4719543178980, 610839178988
- Also known as
- ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX
Specifications
69 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
| System bus rate | 5 GT/s |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 2048 x 1536 pixels |
| DirectX version | 10.1 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 4 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 213 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
| Trial software | Antivirus |
| Bundled software | ASUS Update ASUS Utilities |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel H61(B3) |
| Audio output | 3 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS P8P67-M PRO R3.0Compare specs

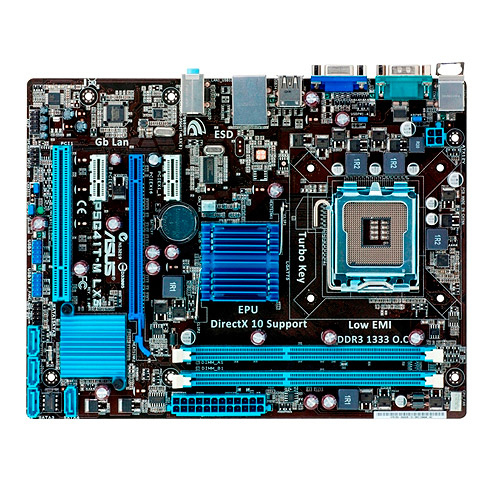

- ASUS P8H61-M Intel® H61 LGA 1155 (Socket H2) micro ATX vsASUS P5G41T-M LX3Compare specs
