ASUS P8H61-I Intel® H61 LGA 1155 (Socket H2) mini ITX
Model P8H61-IPart no. P8H61-I REV 3.0EAN 610839178872
50 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory1748 MB
- USB 2.0 connectors4
- Ethernet interface typeGigabit Ethernet
- Component forPC
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 1748 MB
- USB 2.0 connectors
- 4
- Ethernet interface type
- Gigabit Ethernet
- Component for
- PC
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H61-I
- Part numbers
- P8H61-I REV 3.0, P8H61-I B3, 90-MIBFB0-G0EAY0DZ, P8H61-I
- EAN / UPC
- 610839178872, 4719543178874, 4719543178898
- Also known as
- ASUS P8H61-I Intel® H61 LGA 1155 (Socket H2) mini ITX
Specifications
50 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1748 MB |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

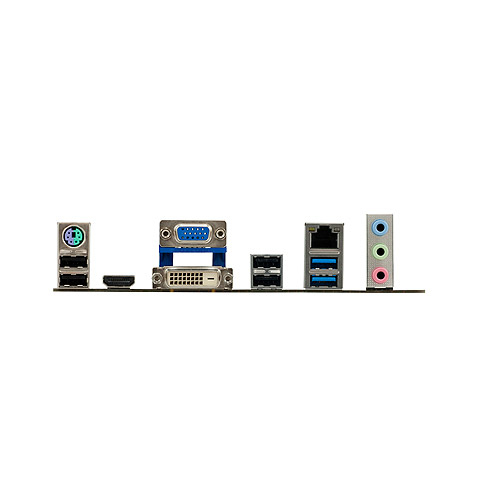

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel® H61 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Certification | RoHs |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 171 mm |
| Depth | 171 mm |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
