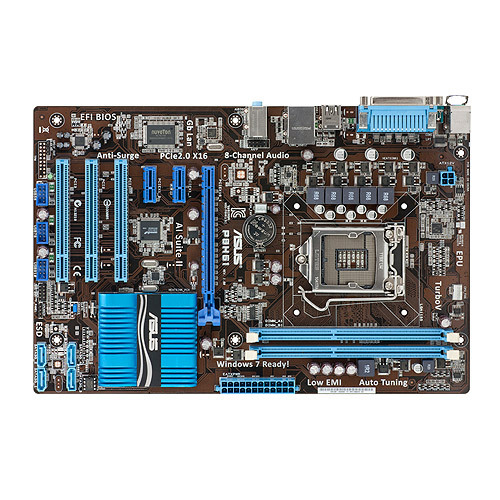

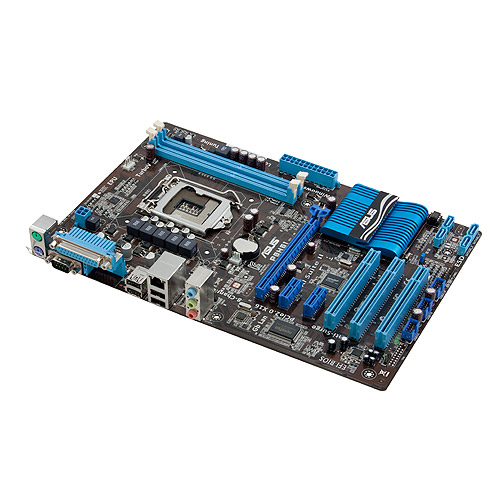

ASUS P8H61 B3

ASUS P8H61 B3

Model P8H61 B3Part no. 90-MIBF00-G0EAY00ZEAN 610839179022

53 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8H61 B3
Part number
90-MIBF00-G0EAY00Z
EAN / UPC
610839179022, 4719543179024
Also known as
ASUS P8H61 B3 Intel® H61 LGA 1155 (Socket H2) ATX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
System bus rate5 GT/s

Memory

Number of memory slots2
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Chassis intrusion connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
S/PDIF out portNo
COM ports quantity1
Parallel ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbit/sec

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel® H61
Audio chipRealtek ALC887
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots3

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth203 mm

Packaging content

Drivers includedYes

Other features

Quick installation guideYes
Manageability featuresWOL by PME,WOR by PME,PXE
