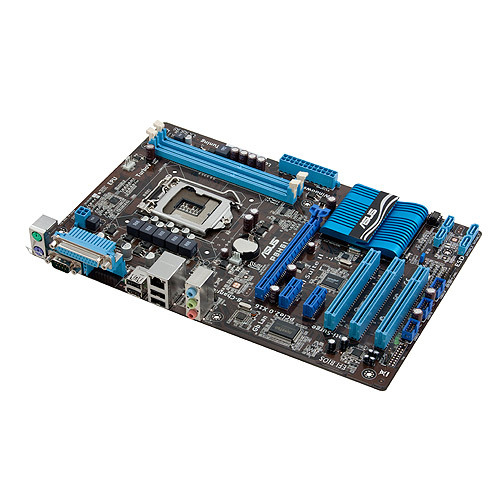

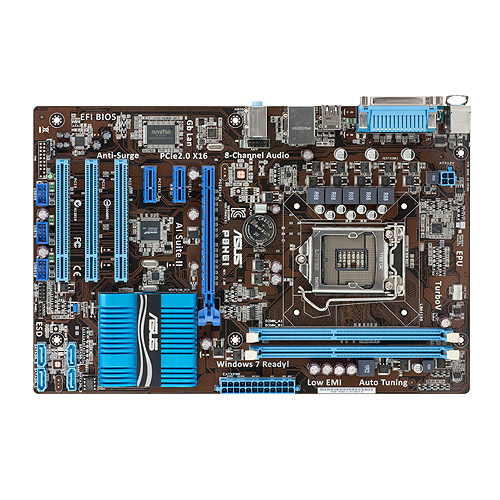

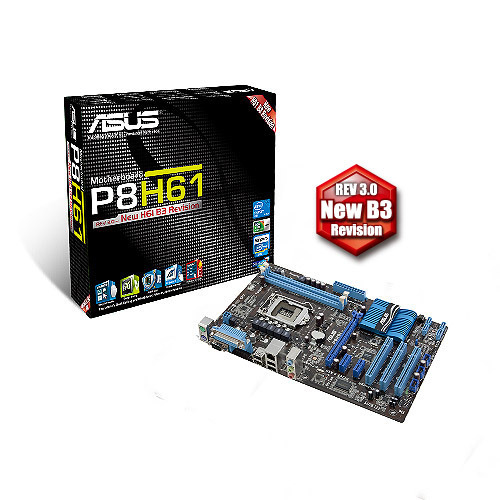

ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
Model P8H61
54 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111E
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111E
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8H61
- Part numbers
- P8H61, P8H61 <REV.3.0>, 90-MIBF00-G0EAY0KZ, P8H61(REV 3.0), P8H61 B3
- Also known as
- ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
Specifications
54 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333 MHz |
| Maximum internal memory | 16 GB |
| Supported memory module capacities | 2GB, 4GB, 8GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |

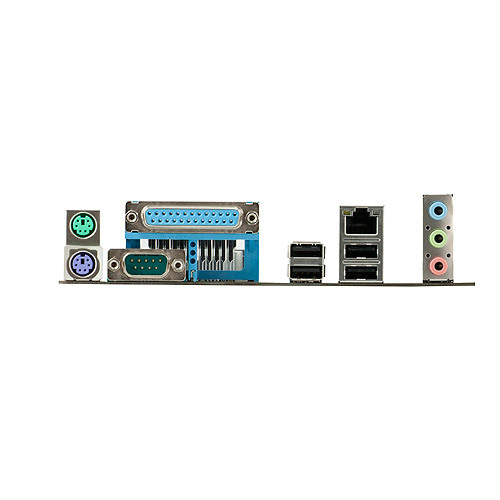

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| COM ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® H61 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Overclocking features | vCore: adjustable CPU voltage at 0.01V increment vCCIO: adjustable I/O voltage at 0.005V increment vDRAM Bus: 190-step DRAM voltage control vPCH: 190-step chipset voltage control BCLK/PEG frequency tuning from 80MHz up to 300MHz at 1MHz increment ASUS C.P.R.(CPU Parameter Recall) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI |
| BIOS memory size | 32 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 203 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Trial software | Anti-virus software (OEM version) |
| Bundled software | ASUS Update ASUS Utilities |
What people say
Reviews & ratings
ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
No reviews yet
Be the first to tell others how ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX

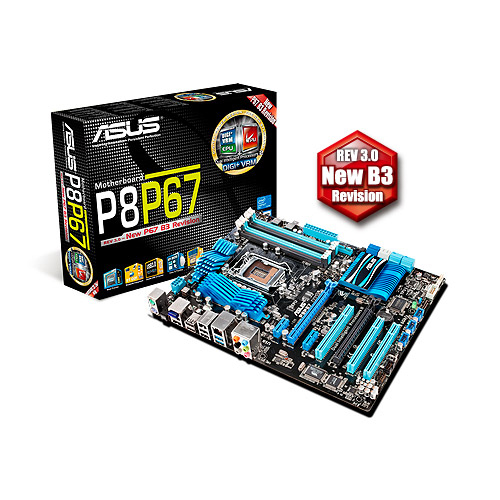

All motherboard comparisons- ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX vsASUS P8P67 Rev 3.0Compare specs

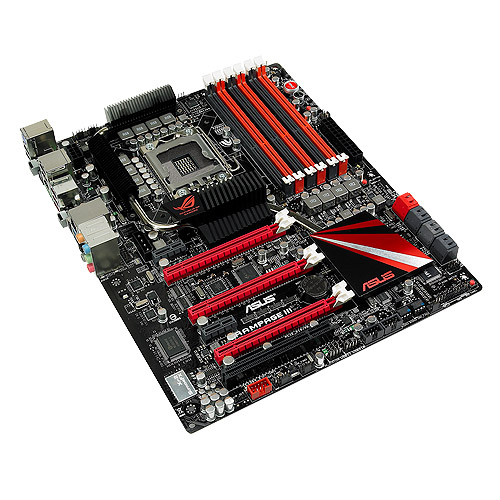

- ASUS P8H61 motherboard Intel® H61 LGA 1155 (Socket H2) ATX vsASUS Rampage III FormulaCompare specs
