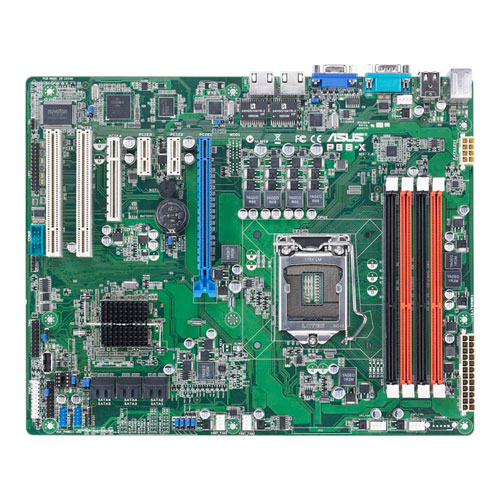

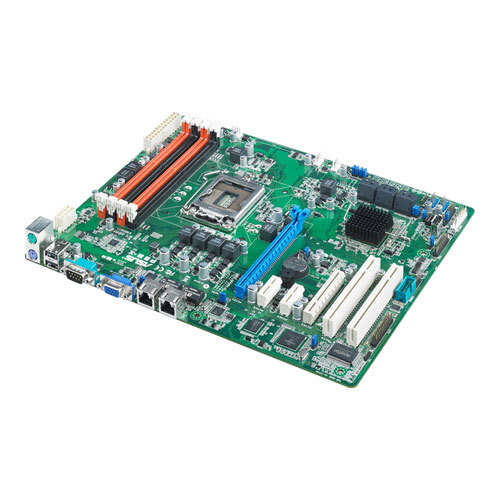

ASUS P8B-X motherboard Intel® C202
Model P8B-XPart no. 90-MSVDG0-G0UAY0YZEAN 4719543178942
26 specifications
- Memory channelsDual-channel
- RAID levels0, 1, 5, 10
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity2
- LAN controllerIntel® 82574L
Overview
- Memory channels
- Dual-channel
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82574L
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8B-X
- Part numbers
- 90-MSVDG0-G0UAY0YZ, P8B-X
- EAN / UPC
- 4719543178942, 086000174910, 610839178940, 6108391789406
- Also known as
- ASUS P8B-X motherboard Intel® C202
Specifications
26 specifications in 12 groups
Memory
| Specification | Value |
|---|---|
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1066,1333 MHz |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

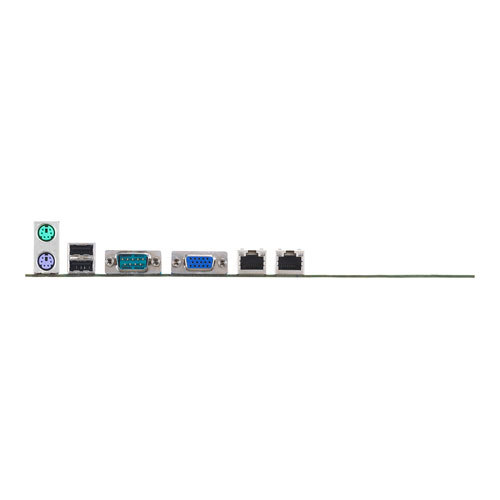

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® C202 |
| Certification | FC, CE |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Number of DIMM slots | 4 |
