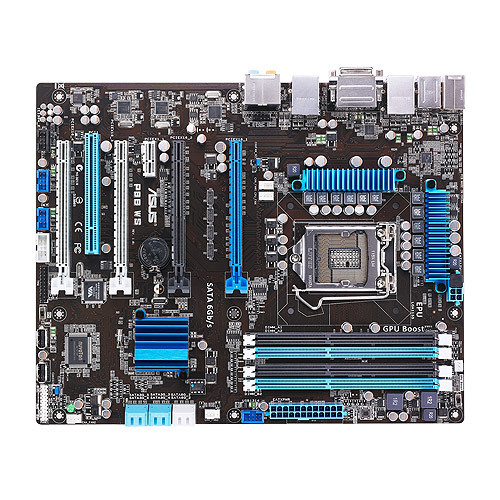

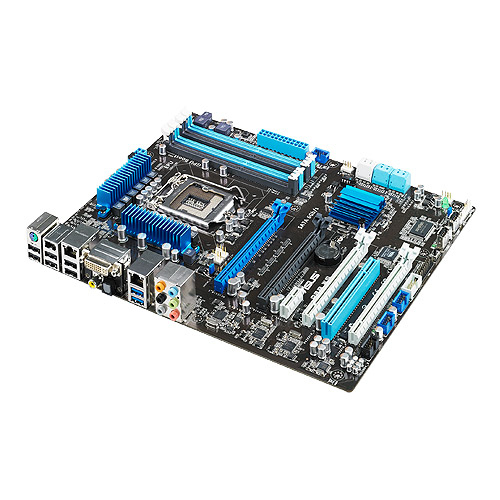

ASUS P8B WS

ASUS P8B WS

Model P8B WSPart no. 90-MSVDI0-G0UAY00ZEAN 4719543179109

57 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • Maximum graphics card memory1748 MB
  • USB 2.0 ports quantity6
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
Maximum graphics card memory
1748 MB
USB 2.0 ports quantity
6
Ethernet interface type
Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P8B WS
Part numbers
90-MSVDI0-G0UAY00Z, 90-MSVDI0-G0EAY0YZ
EAN / UPC
4719543179109, 5711045181016
Also known as
ASUS P8B WS Intel® C206 LGA 1155 (Socket H2) ATX

Specifications

57 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Core™ i3

Memory

Number of memory slots4
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1066,1333 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory1748 MB
Parallel processing technology supportQuad-GPU CrossFireX
On-board graphics cardYes

Internal I/O

USB 2.0 connectors4
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1
TPM connectorYes

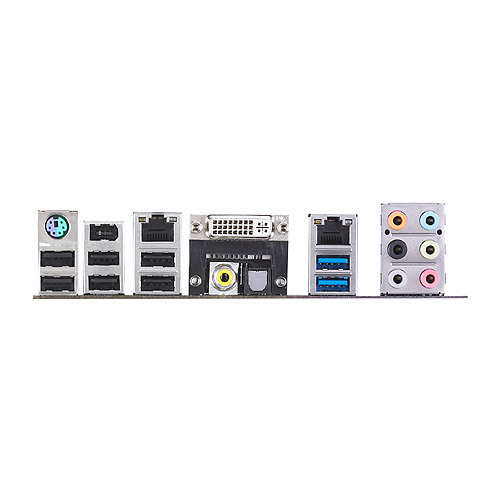

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
DVI-I ports quantity1
Headphone outputs6
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel® C206
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2 Enterprise 32/64-bit Windows 7 32/64-bit Windows Vista 32/64-bit Windows XP 32/64-bit

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots4
PCI Express slots version2.0
PCI slots1

BIOS

BIOS typeEFI
BIOS memory size32 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth245 mm

Other features

Controller interface typeIntel 82574L
Manageability featuresWfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
