ASUS P8B-C/4L motherboard Intel® C202
Model P8B-C/4LEAN 4719543180471
22 specifications
- Memory channelsDual-channel
- RAID levels0, 1, 5, 10
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity2
- LAN controllerIntel® 82574L
Overview
- Memory channels
- Dual-channel
- RAID levels
- 0, 1, 5, 10
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- LAN controller
- Intel® 82574L
- Brand
- ASUS
- Category
- Motherboard
- Model
- P8B-C/4L
- Part numbers
- P8B-C/4L, 90-MSVDM0-G0UAY00Z, 90-MSVDM0-G0UAY0YZ
- EAN / UPC
- 4719543180471, 610839180479, 6108391804796
- Also known as
- ASUS P8B-C/4L motherboard Intel® C202
Specifications
22 specifications in 11 groups
Memory
| Specification | Value |
|---|---|
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 1066,1333 MHz |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® C202 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 5 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
What people say
Reviews & ratings
ASUS P8B-C/4L motherboard Intel® C202
No reviews yet
Be the first to tell others how ASUS P8B-C/4L motherboard Intel® C202 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P8B-C/4L motherboard Intel® C202
All motherboard comparisons- ASUS P8B-C/4L motherboard Intel® C202 vsASUS P8P67 DELUXE REV3.0Compare specs
- ASUS P8B-C/4L motherboard Intel® C202 vsASUS M4A87T motherboard AMD 870 (RX881) Socket AM3 ATXCompare specs
- ASUS P8B-C/4L motherboard Intel® C202 vsASUS E35M1-I motherboard AMD A50M FCH NA (integrated CPU) mini ITXCompare specs

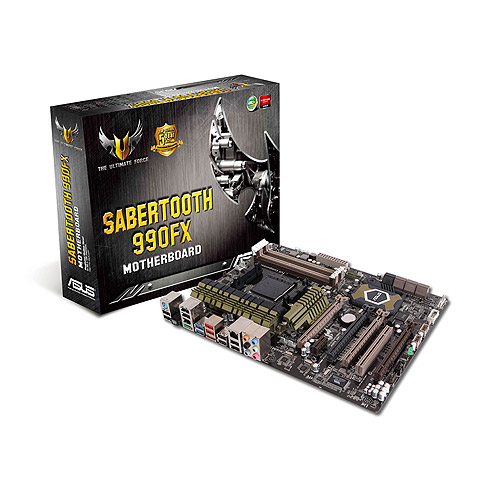

- ASUS P8B-C/4L motherboard Intel® C202 vsASUS Sabertooth 990FXCompare specs
