ASUS P7Q57-M DO
Model P7Q57-M DOPart no. 90-MIBBE0-G0EAY0KZEAN 4719543173343
48 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- On-board graphics cardYes
- USB 2.0 ports quantity6
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- On-board graphics card
- Yes
- USB 2.0 ports quantity
- 6
- Networking features
- Gigabit Ethernet
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7Q57-M DO
- Part numbers
- 90-MIBBE0-G0EAY0KZ, P7Q57-M DO
- EAN / UPC
- 4719543173343
- Also known as
- ASUS P7Q57-M DO LGA 1156 (Socket H) micro ATX
Specifications
48 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| COM ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100 |
| Controller interface type | SATA 3.0 Gb/s |
| Graphics controller | Intel |
| Manageability features | WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
What people say
Reviews & ratings
ASUS P7Q57-M DO
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7Q57-M DO
All motherboard comparisons- ASUS P7Q57-M DO vsASUS P6X58D PremiumCompare specs
- ASUS P7Q57-M DO vsASUS M4A78LT-M Socket AM3 micro ATXCompare specs
- ASUS P7Q57-M DO vsASUS M4N68T-M Socket AM3 micro ATXCompare specs

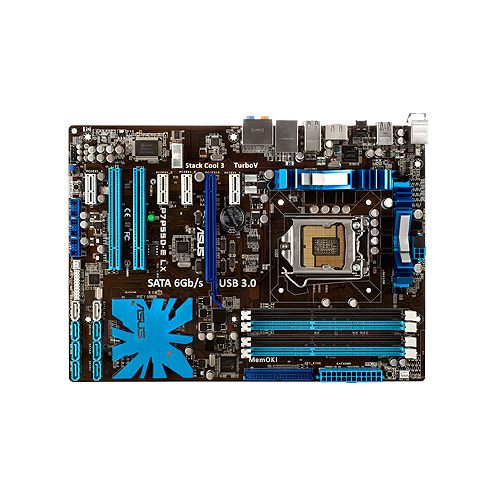

- ASUS P7Q57-M DO vsASUS P7P55D-E LXCompare specs
