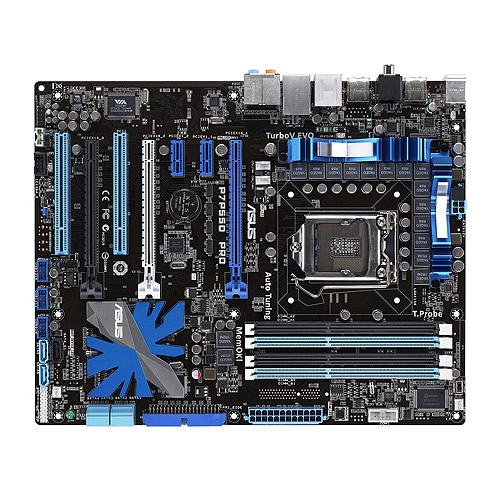

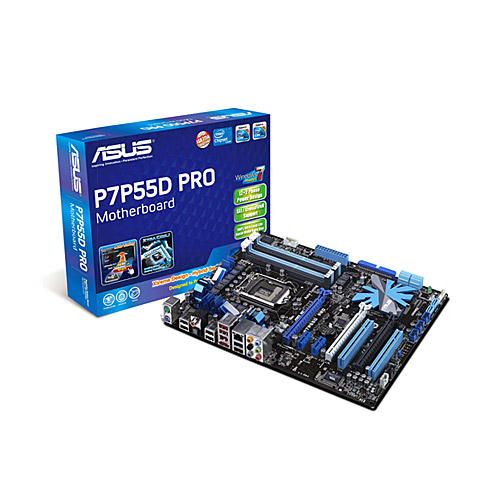

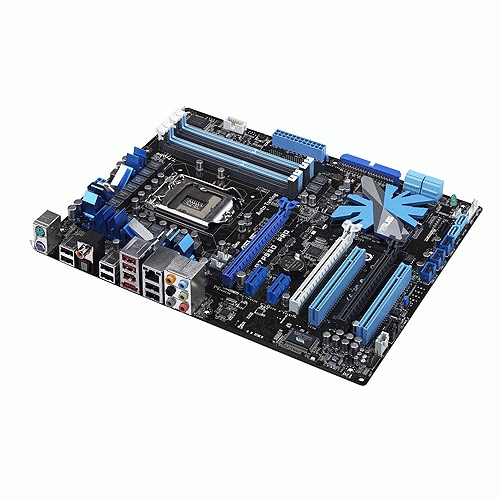

ASUS P7P55D PRO
Model P7P55D PROEAN 8179145172636
49 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8112L
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8112L
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7P55D PRO
- Part numbers
- P7P55D PRO, 90-MIB8X0-G0EAY00Z
- EAN / UPC
- 8179145172636, 683728237349, 4719543172636, 610839172634
- Also known as
- ASUS P7P55D PRO LGA 1156 (Socket H) ATX
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 7 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |

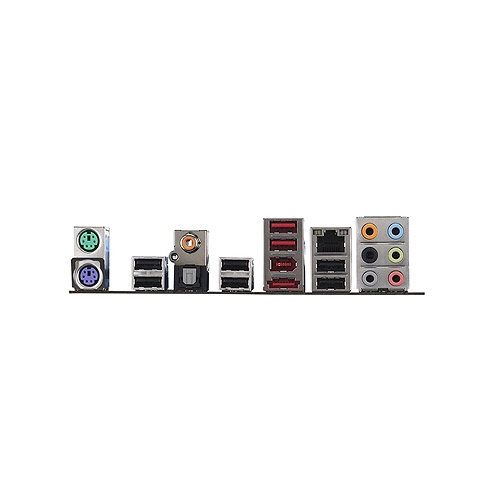

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | VIA VT1828S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | UltraDMA 133/100/66 |
| Controller interface type | SATA 3.0 Gb/s |
What people say
Reviews & ratings
ASUS P7P55D PRO
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7P55D PRO

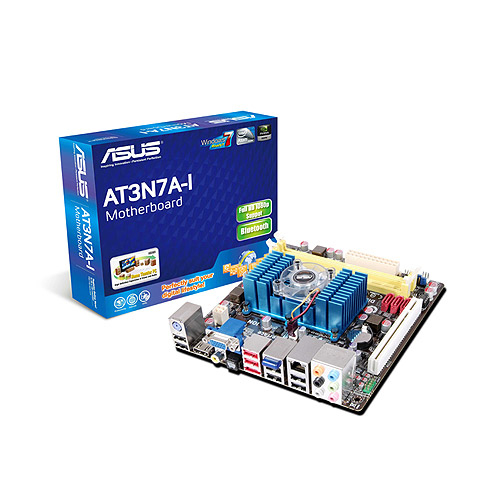

All motherboard comparisons- ASUS P7P55D PRO vsASUS AT3N7A-I NA (integrated CPU) mini ITXCompare specs

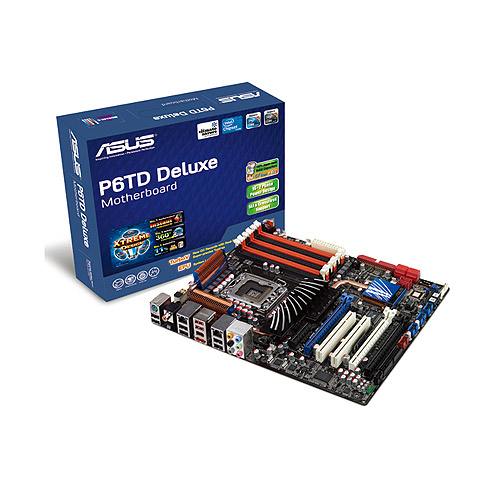

- ASUS P7P55D PRO vsASUS P6TD DeluxeCompare specs
