ASUS P7P55D-E PRO

ASUS P7P55D-E PRO

Model P7P55D-E PROPart no. 90-MIBBS0-G0EAY00ZEAN 610839173983

52 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 10
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 10
On-board graphics card
No
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
ASUS
Category
Motherboard
Model
P7P55D-E PRO
Part number
90-MIBBS0-G0EAY00Z
EAN / UPC
610839173983, 4719543173985
Also known as
ASUS P7P55D-E PRO Intel® P55 LGA 1156 (Socket H) ATX

Specifications

52 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1156 (Socket H)

Memory

Number of memory slots4
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 10

Graphics

On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA connectors9
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of IEEE1394 connectors1

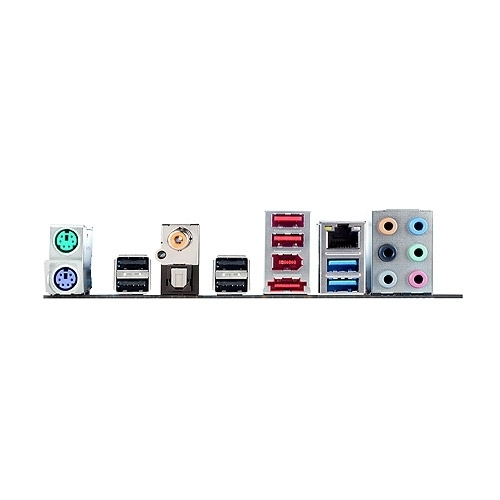

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity1
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs7
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

LAN controllerRealtek RTL8112L
Networking featuresGigabit Ethernet

Features

Motherboard form factorATX
Motherboard chipsetIntel® P55
Audio chipVIA VT1828S
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows XP, Vista, 7
CertificationRoHS

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots3

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Manageability featuresWfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
