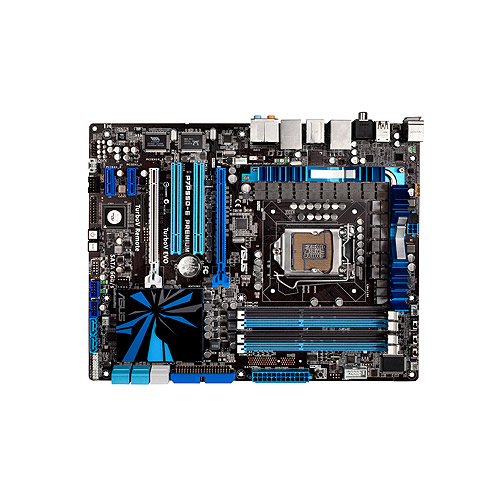

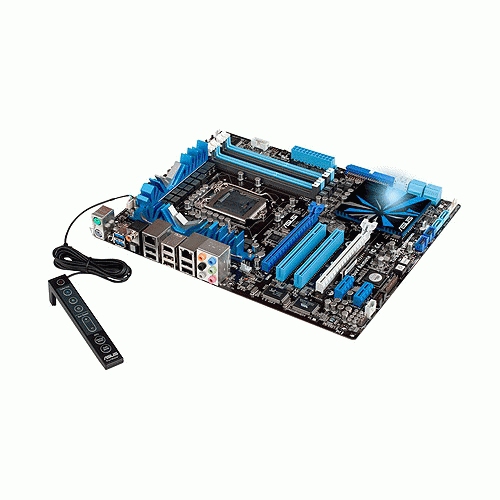

ASUS P7P55D-E Premium
Model P7P55D-E PremiumPart no. 90-MIBBP0-G0EAY00ZEAN 610839173846
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- Networking features10/100/1000 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- Networking features
- 10/100/1000 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7P55D-E Premium
- Part numbers
- 90-MIBBP0-G0EAY00Z, P7P55D-E PREMIUM
- EAN / UPC
- 610839173846, 4719543173848
- Also known as
- ASUS P7P55D-E Premium Intel® P55 LGA 1156 (Socket H) ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |

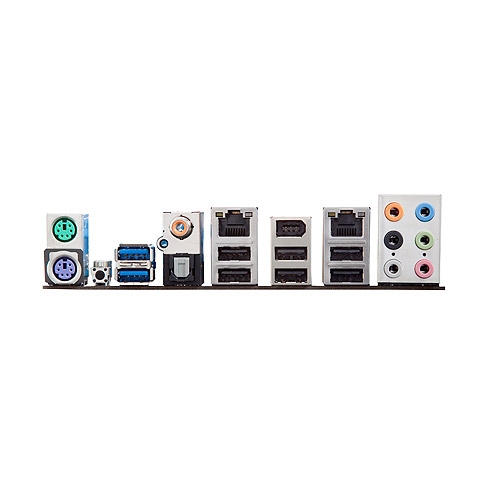

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | VIA VT2020 |
| Audio output channels | 7.1+2 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
What people say
Reviews & ratings
ASUS P7P55D-E Premium
No reviews yet
Be the first to tell others how ASUS P7P55D-E Premium works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7P55D-E Premium
All motherboard comparisons- ASUS P7P55D-E Premium vsASUS P7P55D-E Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- ASUS P7P55D-E Premium vsASUS P7F-M WSCompare specs

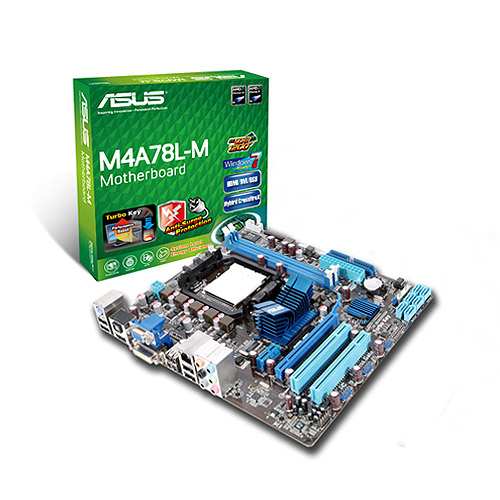

- ASUS P7P55D-E Premium vsASUS M4A78L-M Socket AM3 micro ATXCompare specs

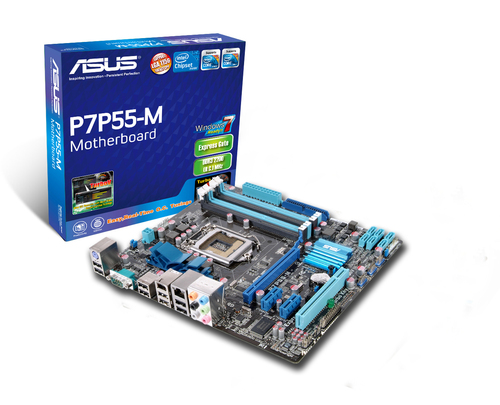

- ASUS P7P55D-E Premium vsASUS P7P55-M motherboard Intel® P55 LGA 1156 (Socket H) micro ATXCompare specs
- ASUS P7P55D-E Premium vsMSI 770-G45 motherboard AMD 770 Socket AM3 ATXCompare specs
- ASUS P7P55D-E Premium vsMSI Big Bang-TrinergyCompare specs

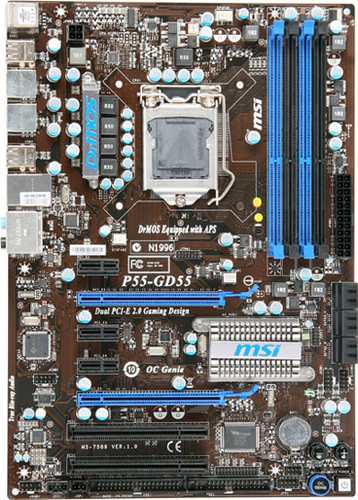

- ASUS P7P55D-E Premium vsMSI P55-GD55 motherboard LGA 1156 (Socket H) ATXCompare specs

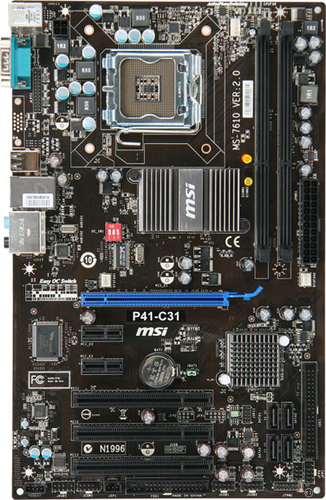

- ASUS P7P55D-E Premium vsMSI P41-C31 motherboard LGA 775 (Socket T) ATXCompare specs
