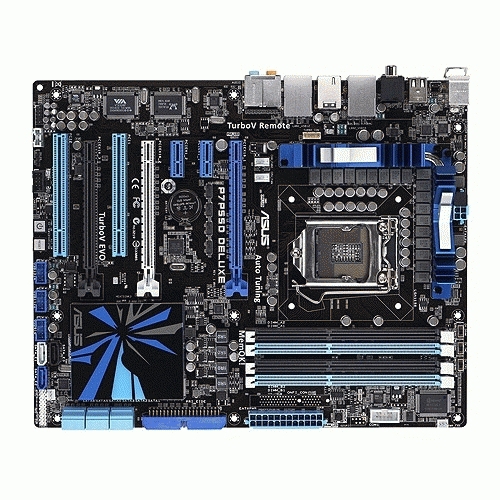

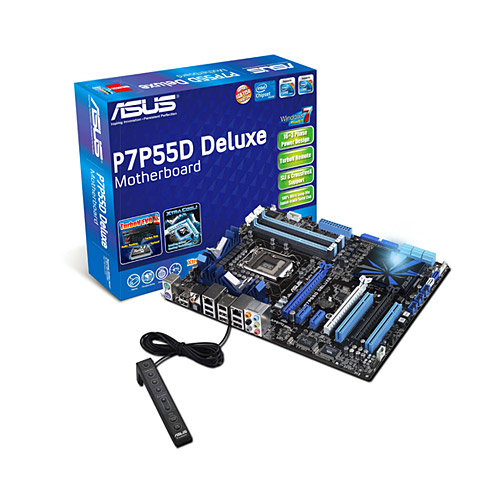

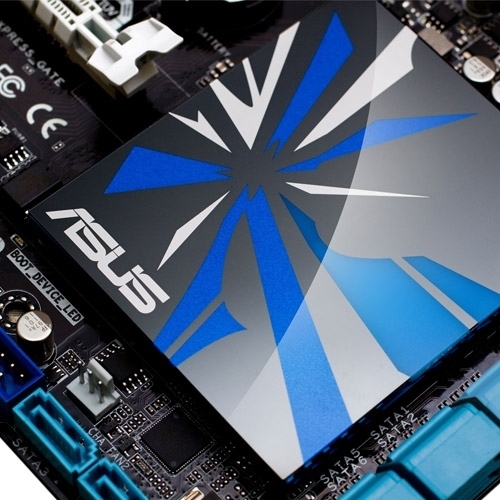

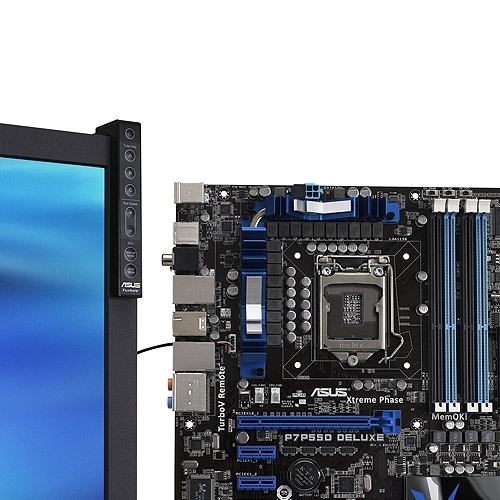

ASUS P7P55D DELUXE

ASUS P7P55D DELUXE

Model P7P55D DELUXEPart no. P7P55DDELUXEEAN 610839172450

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesIDE, SATA II
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
IDE, SATA II
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Ethernet LAN
Yes
Brand
ASUS
Category
Motherboard
Model
P7P55D DELUXE
Part numbers
P7P55DDELUXE, 90-MIB8M0-G0EAY00Z
EAN / UPC
610839172450, 5052217042057, 4719543172452
Also known as
ASUS P7P55D DELUXE Intel® P55 LGA 1156 (Socket H) ATX

Specifications

63 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1156 (Socket H)
Compatible processor seriesIntel® Core™ i5, Intel® Core™ i7

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds1333,1600,2200 MHz
Maximum internal memory16 GB

Storage controllers

Supported storage drive interfacesIDE, SATA II
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX, Quad-GPU SLI

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors7
Number of SATA connectors7
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of IEEE1394 connectors1

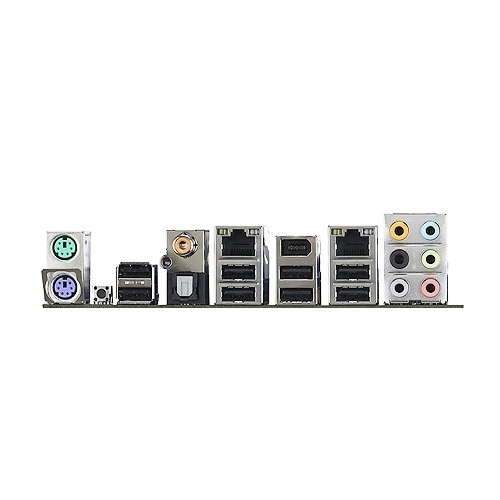

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Networking featuresDual Gigabit LAN

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® P55
Audio chipVIA VT2020
Audio output channels7.1+2 channels
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots4
PCI Express x16 (Gen 2.x) slots1
PCI slots2

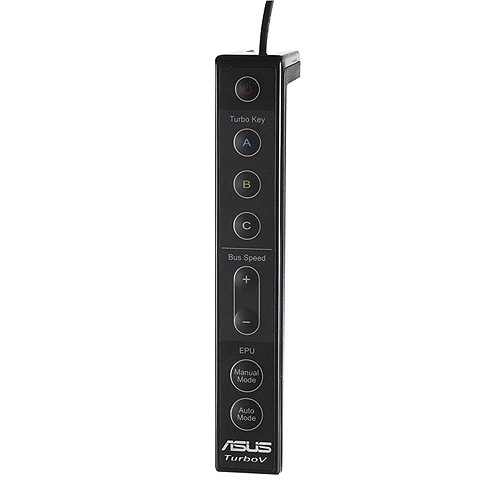

Expansion slots2 x Drive Xpert SATA, 1 x TURBO_CON header

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Controller 2nd interface typeUltraDMA 133/100/66
Controller interface typeSATA 3.0 Gb/s
