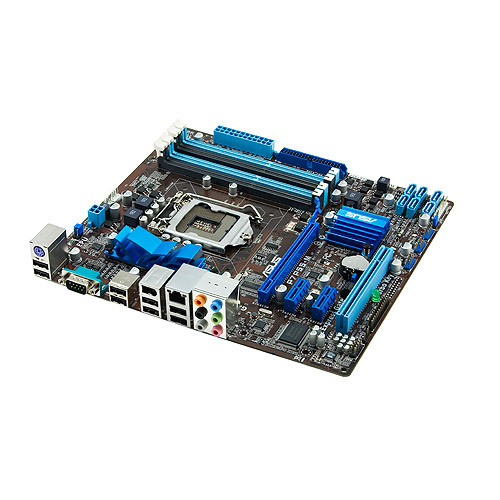

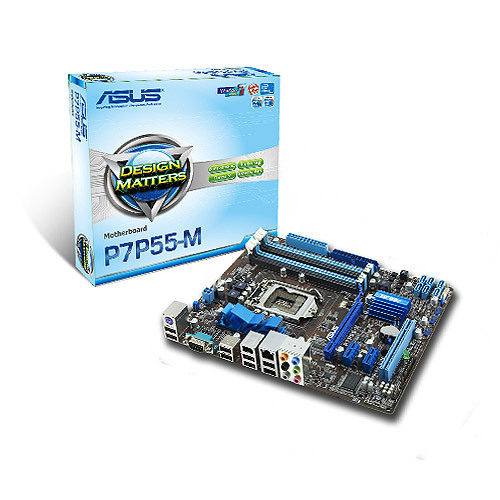

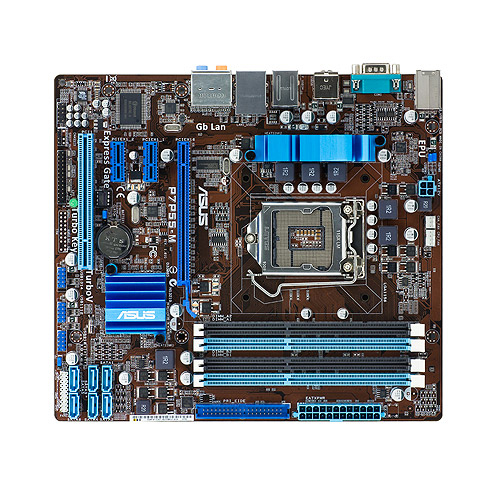

ASUS P7P55-M C SI
Model P7P55-M C SIPart no. P7P55-M/C/SI
36 specifications
- Processor socketLGA 1156 (Socket H)
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, 10
- Parallel processing technology supportNot supported
- USB 2.0 connectors3
- USB 2.0 ports quantity14
Overview
- Processor socket
- LGA 1156 (Socket H)
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, 10
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 14
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7P55-M C SI
- Part number
- P7P55-M/C/SI
- Also known as
- ASUS P7P55-M C SI Intel® P55 LGA 1156 (Socket H) micro ATX
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |

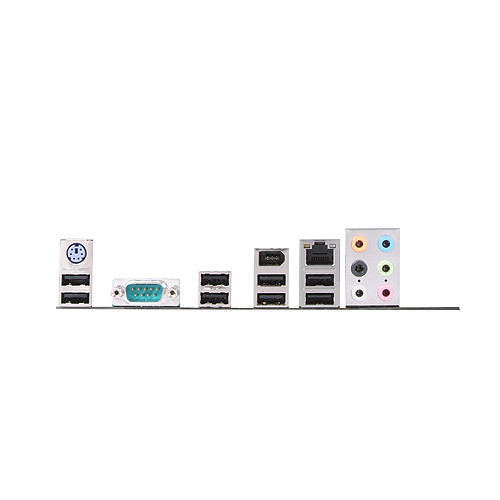

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 14 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel® P55 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 2000/2003/XP/Vista/7 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 224 mm |
| Depth | 218 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
