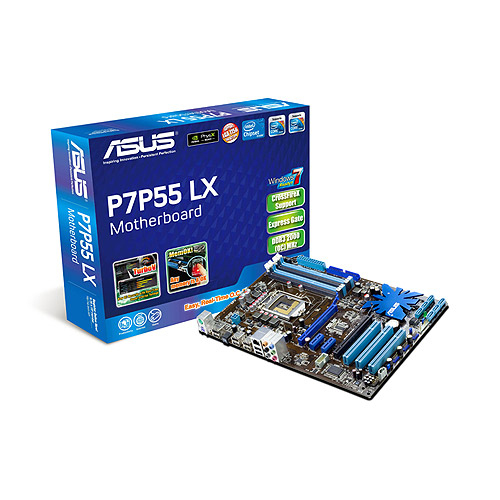

ASUS P7P55 LX
Model P7P55 LXPart no. 90-MIBB80-G0EAY0KZEAN 610839173280
51 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Parallel processing technology supportQuad-GPU CrossFireX
- USB 2.0 connectors3
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Parallel processing technology support
- Quad-GPU CrossFireX
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7P55 LX
- Part number
- 90-MIBB80-G0EAY0KZ
- EAN / UPC
- 610839173280, 4719543173282
- Also known as
- ASUS P7P55 LX Intel® P55 LGA 1156 (Socket H) ATX
Specifications
51 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,2200 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Quad-GPU CrossFireX |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA II connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8112L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | VIA VT1708S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 218 mm |
Other features
| Specification | Value |
|---|---|
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR PME, PXE |
