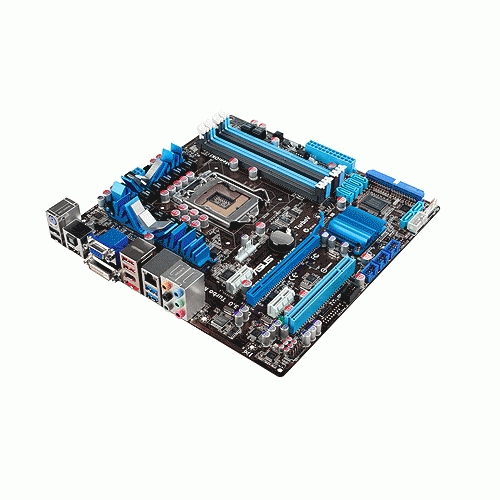

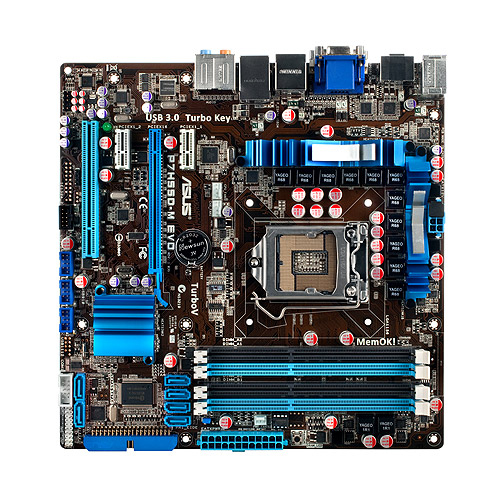

ASUS P7H55D-M EVO
Model P7H55D-M EVOEAN 3606509706183
34 specifications
- Processor manufacturerIntel
- Number of memory slots4
- On-board graphics cardYes
- USB 2.0 connectors3
- LAN controllerRealtek RTL8112L
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8112L
- Motherboard form factor
- micro ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7H55D-M EVO
- Part numbers
- P7H55D-M EVO, 90-MIBBA0-G0EAY0KZ
- EAN / UPC
- 3606509706183, 4719543174463, 610839174461, 5052217127679
- Also known as
- ASUS P7H55D-M EVO LGA 1156 (Socket H) micro ATX
Specifications
34 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |

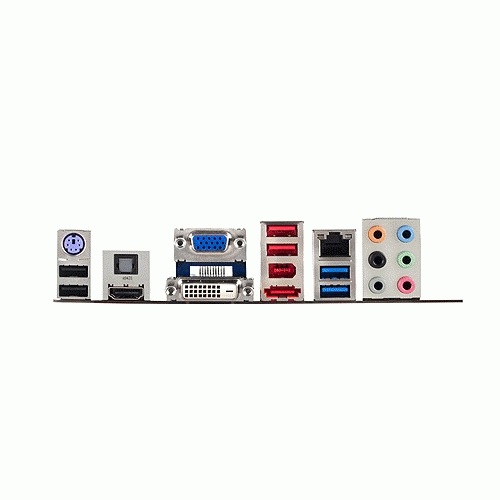

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8112L |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Manageability features | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
What people say
Reviews & ratings
ASUS P7H55D-M EVO
No reviews yet
Be the first to tell others how ASUS P7H55D-M EVO works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7H55D-M EVO
All motherboard comparisons- ASUS P7H55D-M EVO vsASUS P7P55D-E LXCompare specs
- ASUS P7H55D-M EVO vsASUS M4A77TD PRO/U3S6Compare specs

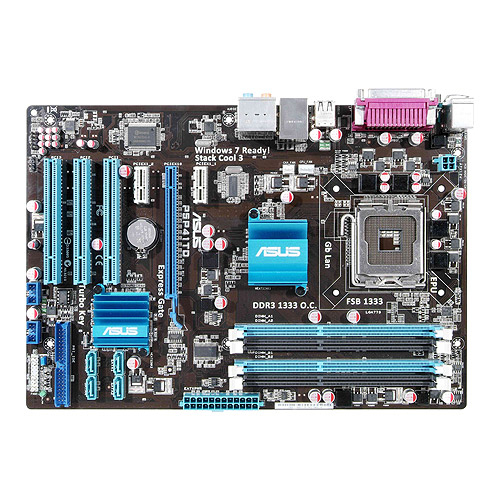

- ASUS P7H55D-M EVO vsASUS P5P41TD LGA 775 (Socket T) ATXCompare specs
