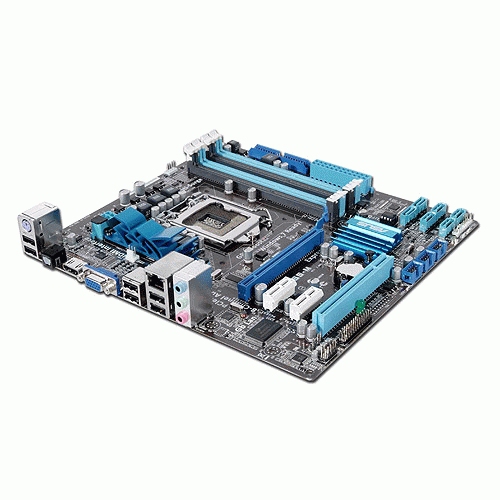

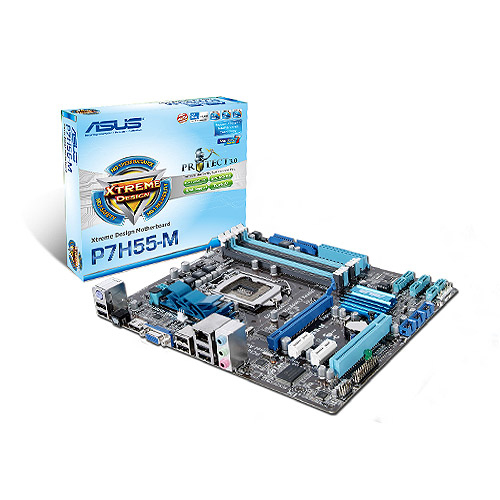

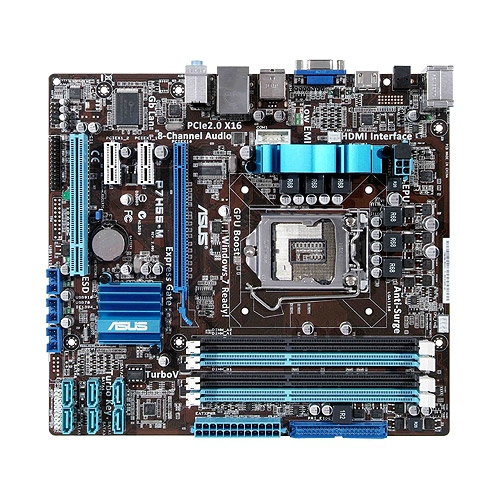

ASUS P7H55-M LGA 1156 (Socket H) micro ATX
Model P7H55-MPart no. 90-MIBCF0-G0UBY0KZEAN 5052179466489
47 specifications
- Processor manufacturerIntel
- Number of memory slots4
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111E
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111E
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7H55-M
- Part numbers
- 90-MIBCF0-G0UBY0KZ, 90-MIBBK3-G0EAY00Z, 90-MIBBK3-G0EAY0KZ, 90-MIBBKF-G0UBY0KZ, P7H55-M/CSM
- EAN / UPC
- 5052179466489, 4719543177013, 610839175369, 4719543175361
- Also known as
- ASUS P7H55-M LGA 1156 (Socket H) micro ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 224 mm |

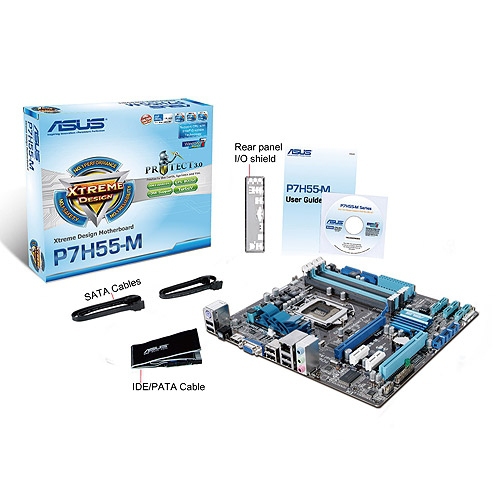

Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | VIA VT6415 PATA |
| Controller interface type | Intel H55 Express |
| I/O ports | 1 x LPT |
| Manageability features | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
