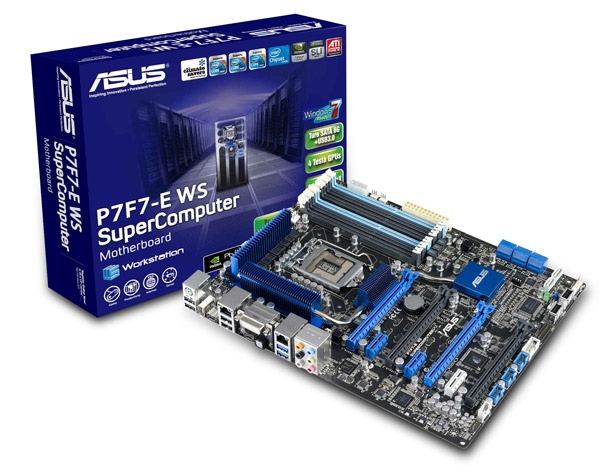

ASUS P7F7-E WS SuperComputer
Model P7F7-E WS SuperComputerPart no. P7F7-E WSEAN 4719543175606
33 specifications
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 ports quantity4
- Motherboard form factorATX
- PCI Express x1 slots3
- BIOS memory size64 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- BIOS memory size
- 64 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7F7-E WS SuperComputer
- Part numbers
- P7F7-E WS, 90-MSVCW0-G0EAY00Z
- EAN / UPC
- 4719543175606, 5711045097379
- Also known as
- ASUS P7F7-E WS SuperComputer Intel® 3450 LGA 1156 (Socket H) ATX
Specifications
33 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 3 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 3450 |
| Audio chip | VIA VT2020 |
| Audio output channels | 7.1+2 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
What people say
Reviews & ratings
ASUS P7F7-E WS SuperComputer
No reviews yet
Be the first to tell others how ASUS P7F7-E WS SuperComputer works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7F7-E WS SuperComputer

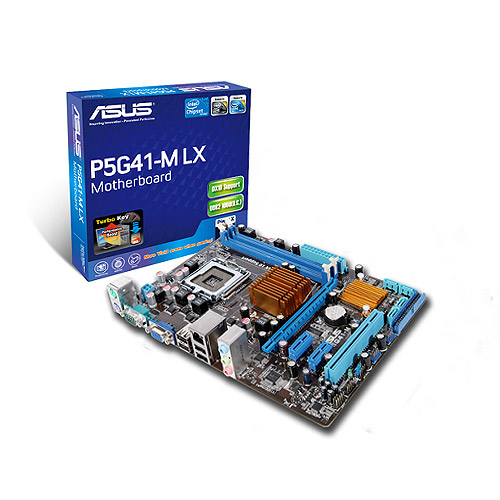

All motherboard comparisons- ASUS P7F7-E WS SuperComputer vsASUS P5G41-M LXCompare specs

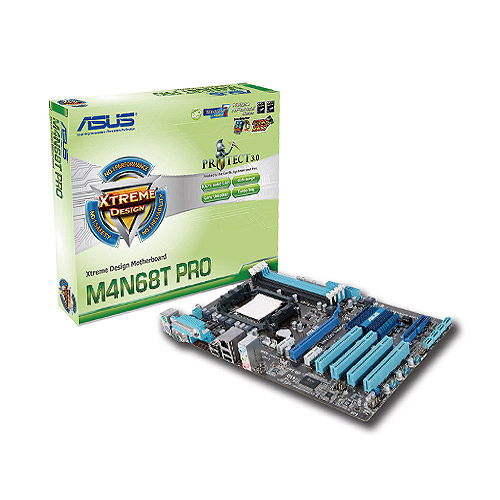

- ASUS P7F7-E WS SuperComputer vsASUS M4N68T PROCompare specs
