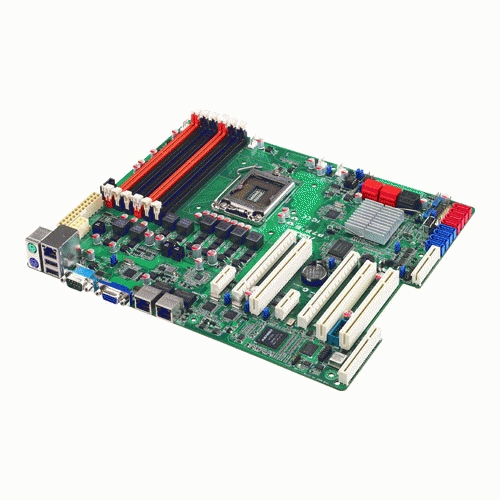

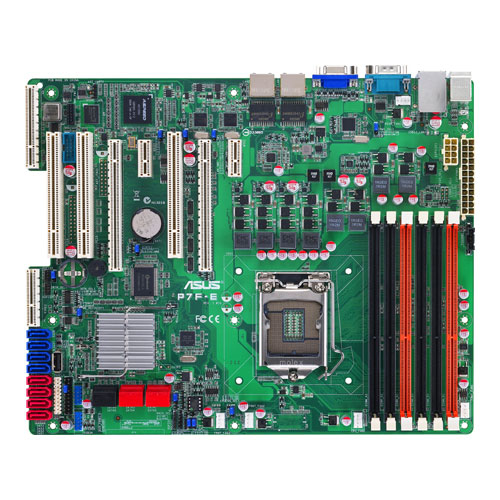

ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX
Model P7F-EPart no. 90-MSVCM0-G0UAY00ZEAN 610839172924
36 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1
- Maximum graphics card memory8 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1
- Maximum graphics card memory
- 8 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7F-E
- Part numbers
- 90-MSVCM0-G0UAY00Z, P7F-E
- EAN / UPC
- 610839172924, 4719543172926
- Also known as
- ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory module capacities | 1GB, 2GB, 4GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Chassis intrusion connector | Yes |

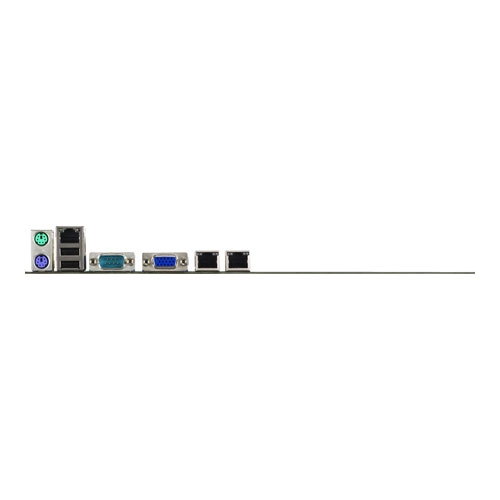

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® 82574L |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 3420 |
| Power source type | ATX |
| Certification | - US (FCC, CFR47 Part 15, Class B) - Europe (CE, EN55022 & EN55024) - Australia (C-TICK) |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 3 |
| Expansion slots | 1 x MIO, 1 x PIKE |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Intel 3420 |
What people say
Reviews & ratings
ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX
All motherboard comparisons- ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX vsASUS P7F-X Intel® 3420 LGA 1156 (Socket H) ATXCompare specs
- ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX vsASUS MB M4A785-M mATX AM2 Plus 785GCompare specs

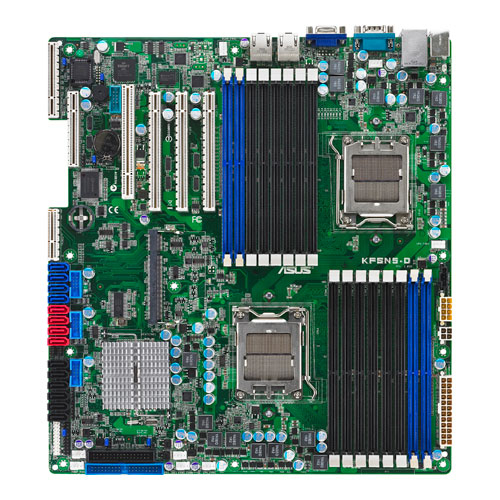

- ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX vsASUS KFSN5-D/IST Socket F (1207) SSI EEBCompare specs

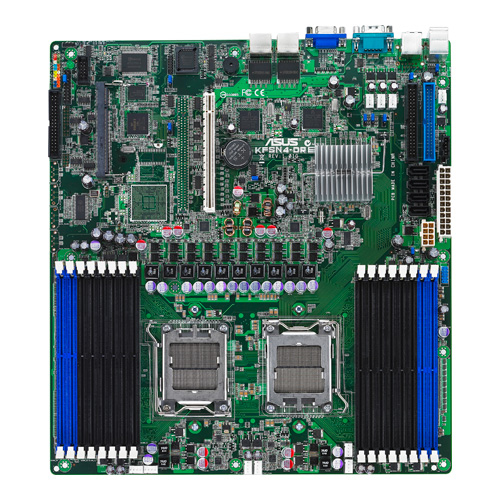

- ASUS P7F-E Intel® 3420 LGA 1156 (Socket H) ATX vsASUS KFSN4-DRE/IKVM/IST motherboard Socket F (1207) SSI EEBCompare specs
