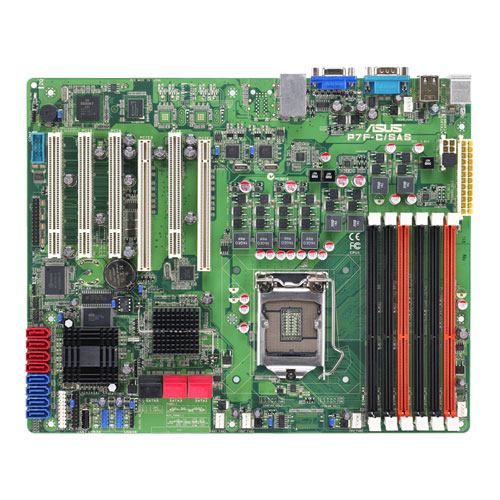

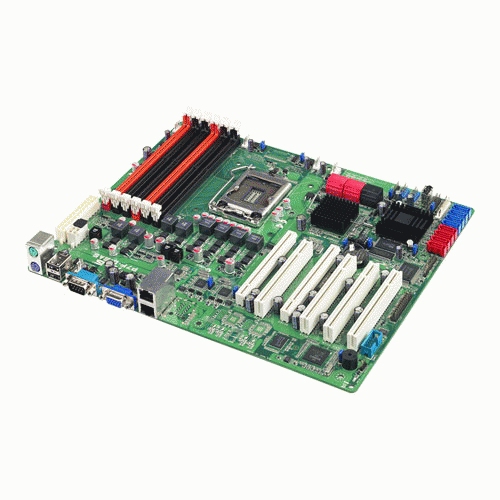

ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX
Model P7F-C/SASPart no. 90-MSVCU0-G0UAY00ZEAN 4719543174609
33 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 1E
- Maximum graphics card memory64 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 1E
- Maximum graphics card memory
- 64 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P7F-C/SAS
- Part number
- 90-MSVCU0-G0UAY00Z
- EAN / UPC
- 4719543174609
- Also known as
- ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX
Specifications
33 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 1E |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 64 MB |
| Graphics card | XGI Z9s |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Chassis intrusion connector | Yes |

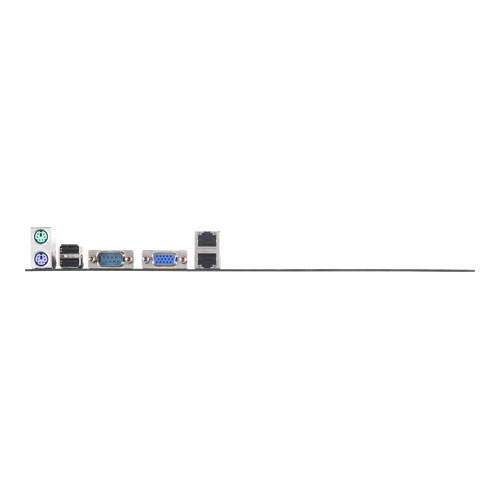

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® 3420 |
| Power source type | ATX |
| Certification | FCC, CFR47 Part 15, Class B, CE, EN55022 & EN55024, C-TICK |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
| PCI slots | 4 |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASWM2.0 |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | LSI 1068E |
| Controller interface type | Intel 3420 |
What people say
Reviews & ratings
ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX
All motherboard comparisons- ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX vsASUS M4A785TD-V EVO/U3S6Compare specs

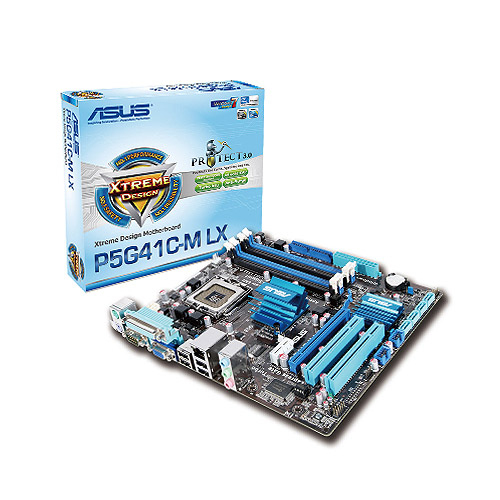

- ASUS P7F-C/SAS Intel® 3420 LGA 1156 (Socket H) ATX vsASUS P5G41C-M LXCompare specs
