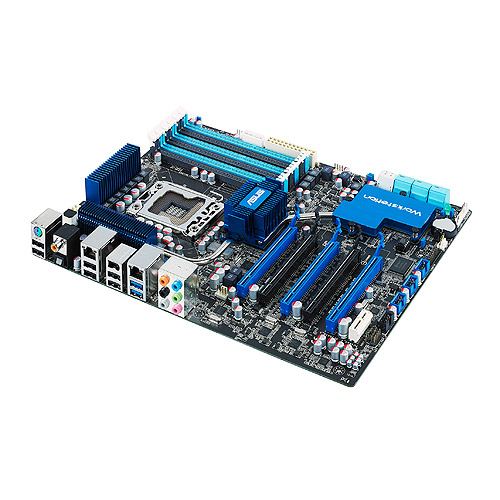

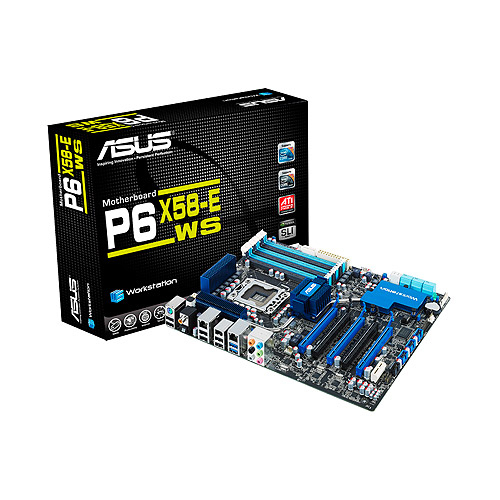

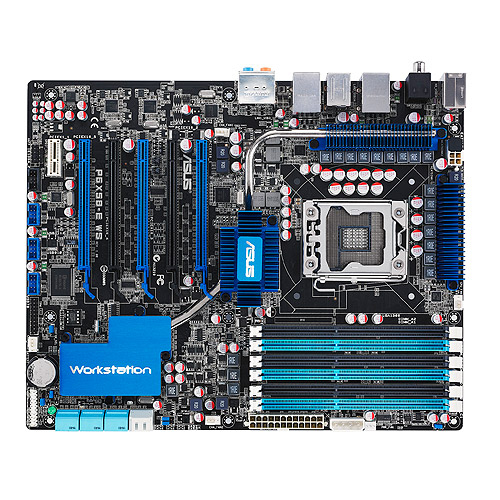

ASUS P6X58-E WS
Model P6X58-E WSPart no. 90-MSVDJ0-G0UAY00ZEAN 4719543180006
45 specifications
- Processor manufacturerIntel
- Number of memory slots6
- Parallel processing technology supportQuad-GPU CrossFireX
- Ethernet interface typeGigabit Ethernet
- Component forPC
- PCI Express x1 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- Parallel processing technology support
- Quad-GPU CrossFireX
- Ethernet interface type
- Gigabit Ethernet
- Component for
- PC
- PCI Express x1 slots
- 1
- Brand
- ASUS
- Category
- Motherboard
- Model
- P6X58-E WS
- Part numbers
- 90-MSVDJ0-G0UAY00Z, P6X58-E WS, 90-MSVDJ0-G0EAY0YZ
- EAN / UPC
- 4719543180006, 5711045241918, 610839180004
- Also known as
- ASUS P6X58-E WS Intel® X58 Socket B (LGA 1366) ATX
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7 |
| Intel Xeon series | E5500, E5600, L5500, L5600, W5500, X5500, X5600 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 1066,1333,1600,1866,2200 MHz |
| Maximum internal memory | 24 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Quad-GPU CrossFireX |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 6 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

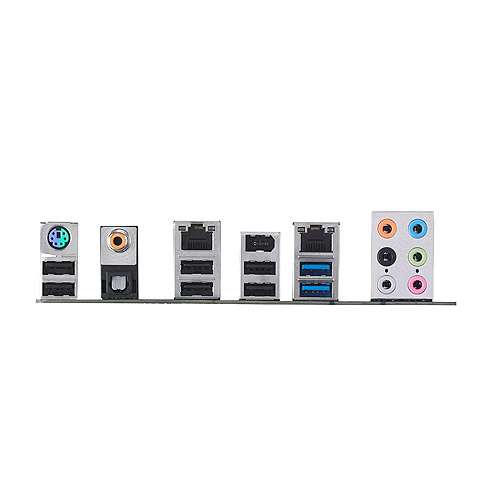

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® X58 |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 2.0a |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
