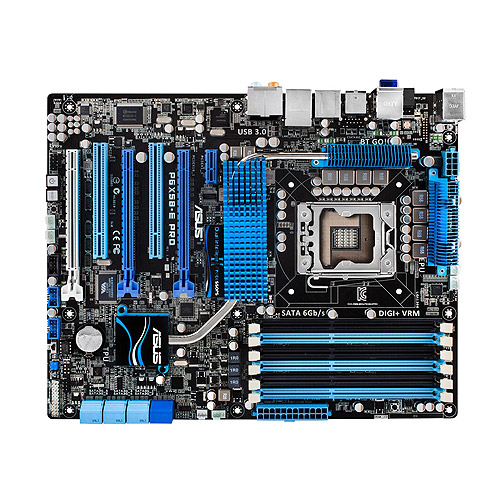

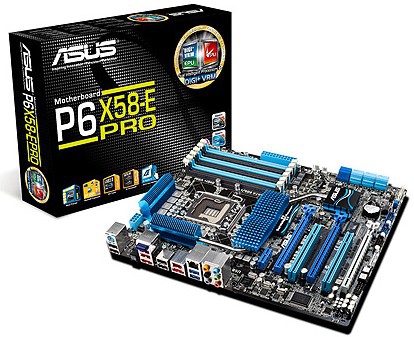

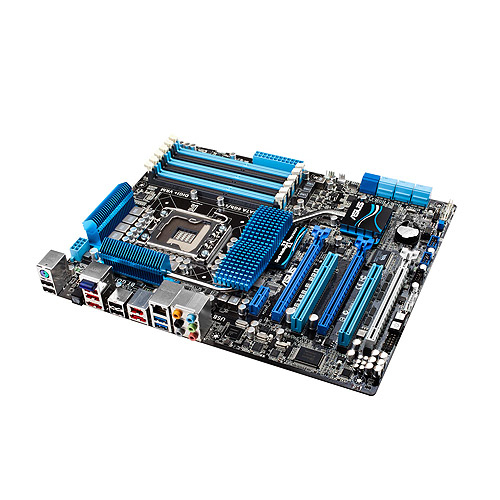

ASUS P6X58-E PRO

ASUS P6X58-E PRO

Model P6X58-E PROEAN 610839180011

59 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
  • Ethernet interface typeFast Ethernet, Gigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Brand
ASUS
Category
Motherboard
Model
P6X58-E PRO
Part number
P6X58-E PRO
EAN / UPC
610839180011
Also known as
ASUS P6X58-E PRO motherboard Intel® X58 Socket B (LGA 1366) ATX

Specifications

59 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketSocket B (LGA 1366)
Compatible processor seriesIntel® Core™ i7
System bus rate6.4 GT/s

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots6
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2000,2133,2200 MHz
Maximum internal memory48 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III
RAID levels0, 1, 5, 10

Internal I/O

USB 2.0 connectors2
Number of SATA III connectors2
Number of SATA II connectors6
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
Number of chassis fan connectors3
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of IEEE1394 connectors1

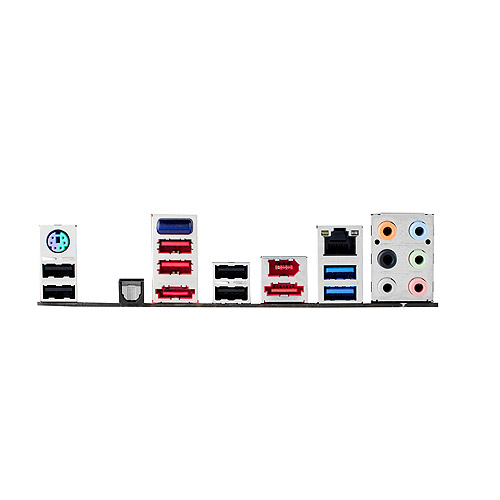

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity2
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes

Network

Ethernet interface typeFast Ethernet, Gigabit Ethernet
BluetoothYes
Bluetooth version2.1+EDR
Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X58
Motherboard southbridgeIntel ICH10R
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots3
PCI Express slots version2.0
PCI-X slots2

BIOS

BIOS typeAMI
BIOS memory size16 Mbit
ACPI version2.0a

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Drivers includedYes

Other features

Controller interface typeIntel ICH10R
Quick installation guideYes
