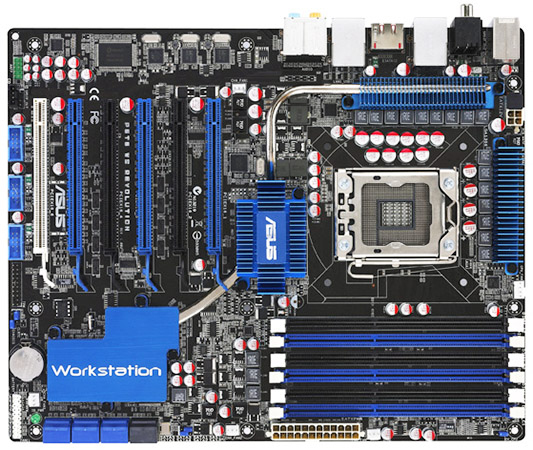

ASUS P6T WS Professional
Model P6T WS ProfessionalPart no. P6T WS PROEAN 5711045513220
25 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 5, 10
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 5, 10
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P6T WS Professional
- Part numbers
- P6T WS PRO, 90-MIB6Q0-G0EAY0YZ, 90-MIB6Q0-G0EAY00Z, P6T WS PROFESSIONAL
- EAN / UPC
- 5711045513220, 610839167791, 4719543167793
- Also known as
- ASUS P6T WS Professional Socket B (LGA 1366) ATX
Specifications
25 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 12 GB |
| Flash memory | 16 MB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| S/PDIF out connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCIe 2.0 x16 (at x16 / x16 mode) 1 x PCIe x1 1 x PCI 2.2 2 x PCI-X |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 245 x 1 mm |
| EZ plug connector | Yes |
