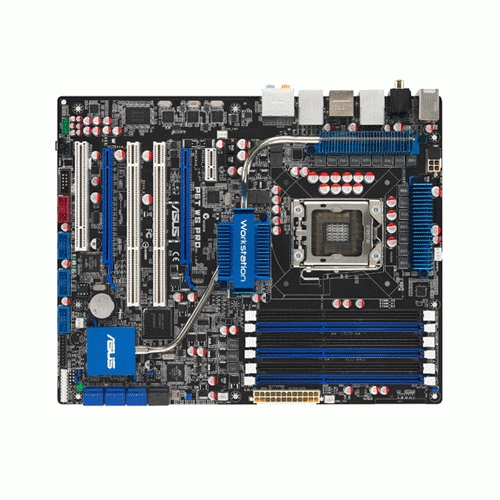

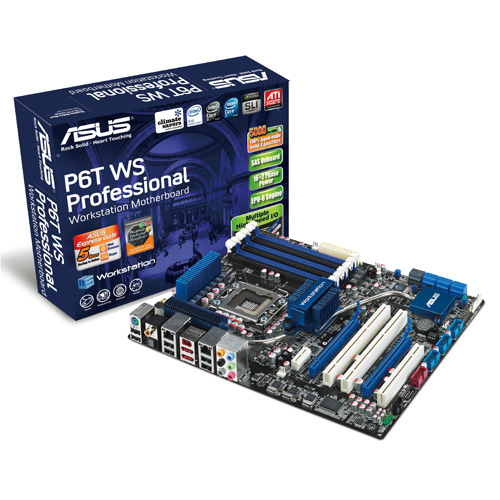

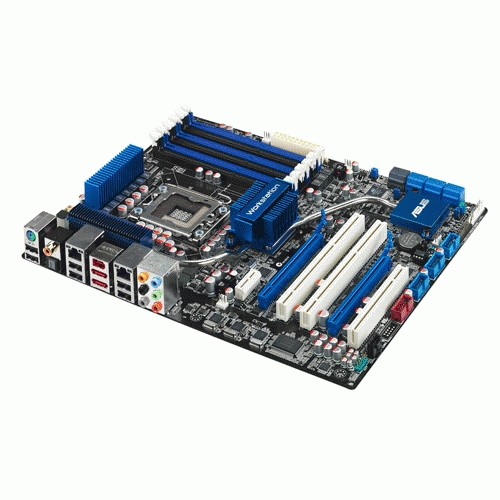

ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX
Model P6T-WS-PRO
26 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 5, 10
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P6T-WS-PRO
- Part number
- P6T-WS-PRO
- Also known as
- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX
Specifications
26 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |

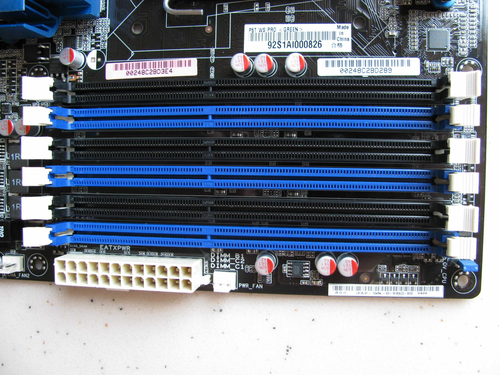

Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Memory voltage | 1.5 V |
| Maximum internal memory | 24 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| S/PDIF out connector | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |

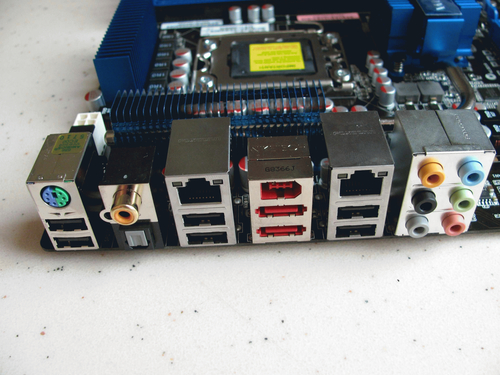

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|

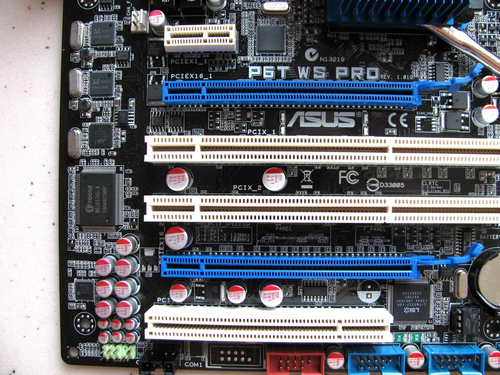

| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 245 x 1 mm |
What people say
Reviews & ratings
ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX
No reviews yet
Be the first to tell others how ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX
All motherboard comparisons- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsASUS P7P55 WS SUPERCOMPUTERCompare specs
- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsASUS SABERTOOTH 55iCompare specs
- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsASUS M4A79XTD EVOCompare specs

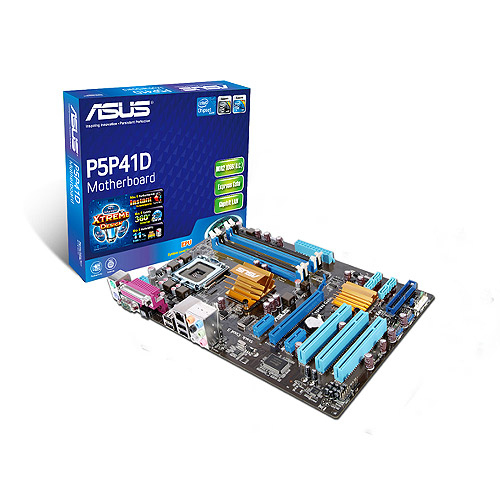

- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsASUS P5P41D LGA 775 (Socket T) ATXCompare specs

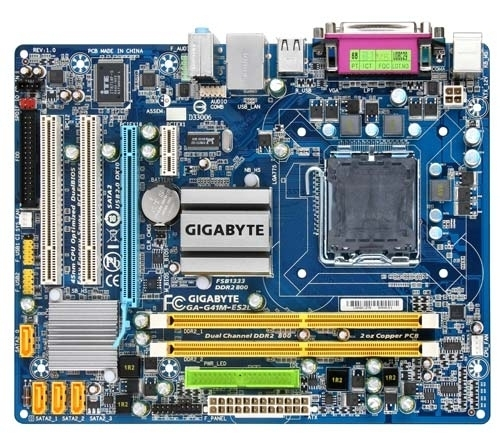

- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsGIGABYTE G41M-ES2L motherboard LGA 775 (Socket T) micro ATXCompare specs
- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsGIGABYTE P43-ES3G P43 ATX Socket 775Compare specs

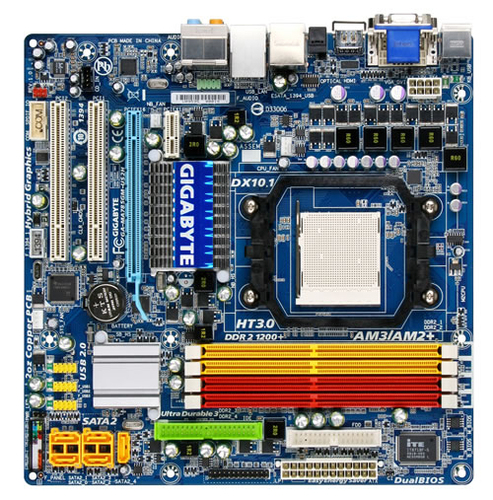

- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsGIGABYTE GA-MA785GM-US2H motherboard AMDCompare specs

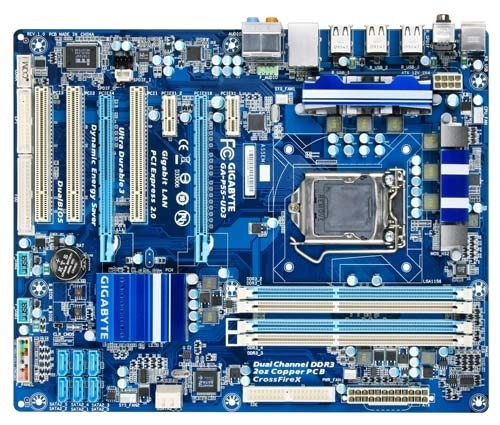

- ASUS P P6T-WS-PRO motherboard Socket B (LGA 1366) ATX vsGIGABYTE P55-UD3 Intel® P55 LGA 1156 (Socket H) ATXCompare specs
