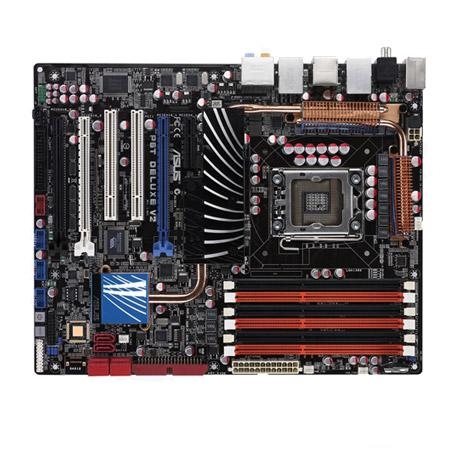

ASUS P6T Deluxe V2
Model P6T Deluxe V2Part no. P6T DELUXE V2EAN 4719543169100
45 specifications
- Processor manufacturerIntel
- Number of memory slots6
- USB 2.0 connectors3
- USB 2.0 ports quantity8
- LAN controllerMarvell 88E8056
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- LAN controller
- Marvell 88E8056
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P6T Deluxe V2
- Part numbers
- P6T DELUXE V2, P6T/DELUXE/V2, 90-MIB7U0-G0EAY00Z, P6TDELUXEV2
- EAN / UPC
- 4719543169100, 610839169108
- Also known as
- ASUS P6T Deluxe V2 Socket B (LGA 1366) ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 24 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

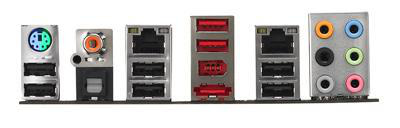

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD2000B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 3 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
