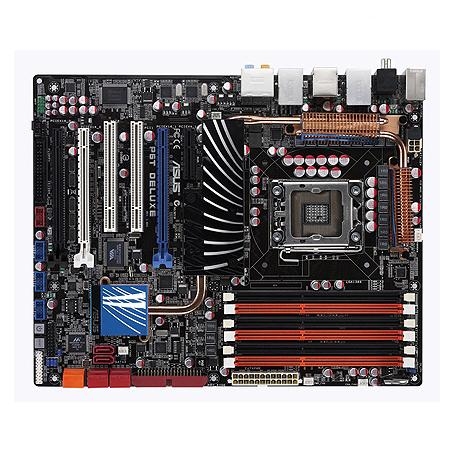

ASUS P6T Deluxe
Model P6T DeluxePart no. 90-MIB600-G0EAY00ZEAN 4719543165843
49 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity8
- LAN controllerMarvell 88E8056
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- LAN controller
- Marvell 88E8056
- Brand
- ASUS
- Category
- Motherboard
- Model
- P6T Deluxe
- Part numbers
- 90-MIB600-G0EAY00Z, P6TDELUXE
- EAN / UPC
- 4719543165843
- Also known as
- ASUS P6T Deluxe Socket B (LGA 1366) ATX
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 12 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Marvell 88E8056 |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD2000B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 3 |
| PCI slots | 2 |
| Expansion slots | 3 x PCIe 2.0 x16 1 x PCIe x4 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATAII |
| Floppy disk drive connector | Yes |
| I/O ports | 2 x SAS |
| Manageability features | WfM 2.0,DMI 2.0,WOL PME,WOR PME,PXE |
What people say
Reviews & ratings
ASUS P6T Deluxe
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P6T Deluxe
All motherboard comparisons- ASUS P6T Deluxe vsASUS P6T Deluxe/OC PalmCompare specs
- ASUS P6T Deluxe vsASUS P6T WS ProfessionalCompare specs

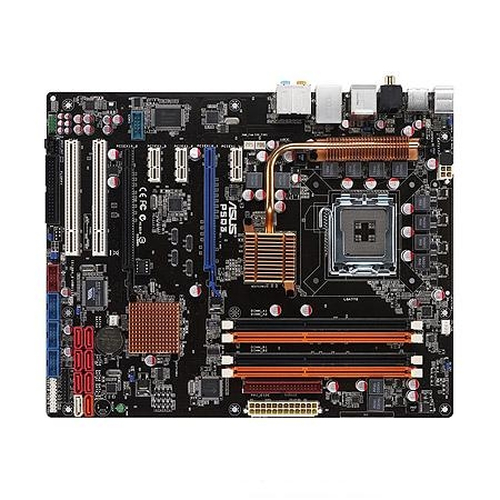

- ASUS P6T Deluxe vsASUS P5Q3 LGA 775 (Socket T) ATXCompare specs
- ASUS P6T Deluxe vsASUS P5QL SECompare specs

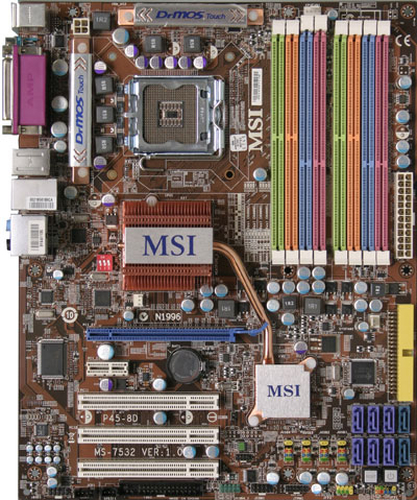

- ASUS P6T Deluxe vsMSI P45-8D Memory LoverCompare specs

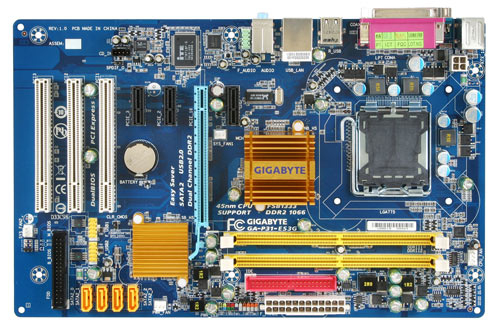

- ASUS P6T Deluxe vsGIGABYTE GA-P31-ES3G motherboard LGA 775 (Socket T) ATXCompare specs

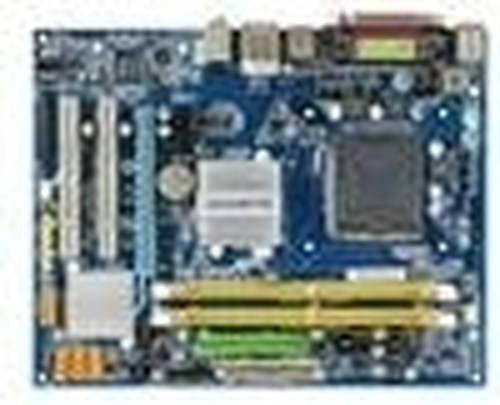

- ASUS P6T Deluxe vsGIGABYTE GA-G31M-S2C motherboard LGA 775 (Socket T) micro ATXCompare specs

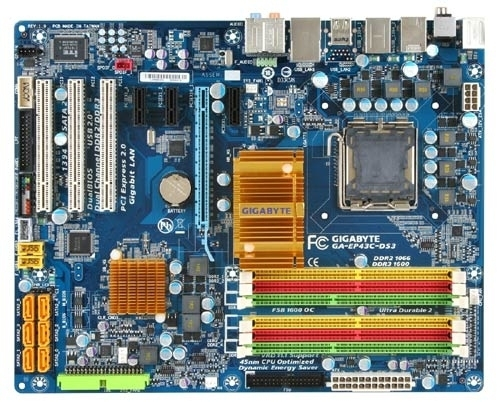

- ASUS P6T Deluxe vsGIGABYTE GA-EP43C-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
