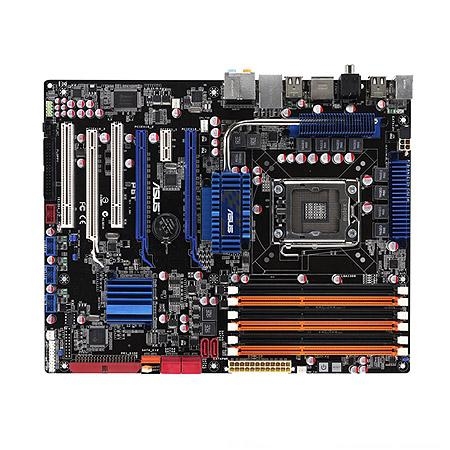

ASUS P6T Socket B (LGA 1366) ATX
Model P6TPart no. 90-MIB720-G0EAY00ZEAN 610839168316
47 specifications
- Processor manufacturerIntel
- Number of memory slots6
- RAID levels0, 1, 5, 10
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- RAID levels
- 0, 1, 5, 10
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- ASUS
- Category
- Motherboard
- Model
- P6T
- Part numbers
- 90-MIB720-G0EAY00Z, P6T
- EAN / UPC
- 610839168316, 4719543168318
- Also known as
- ASUS P6T Socket B (LGA 1366) ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Maximum internal memory | 12 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 3 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | JMicron JMB322 |
| Controller interface type | JMicron JMB363 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
ASUS P6T Socket B (LGA 1366) ATX
No reviews yet
Be the first to tell others how ASUS P6T Socket B (LGA 1366) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P6T Socket B (LGA 1366) ATX
All motherboard comparisons- ASUS P6T Socket B (LGA 1366) ATX vsASUS M4A79 DeluxeCompare specs
- ASUS P6T Socket B (LGA 1366) ATX vsASUS P5KPL-AM SE/C/SICompare specs

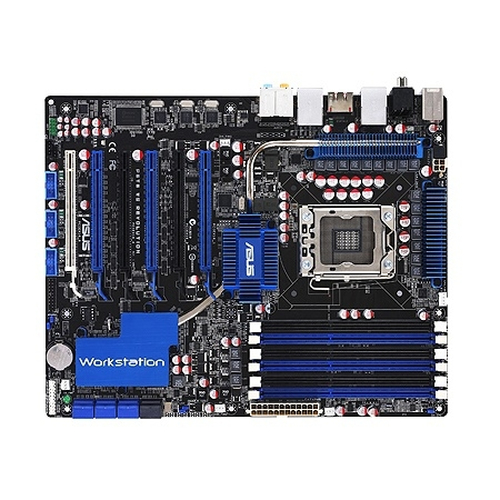

- ASUS P6T Socket B (LGA 1366) ATX vsASUS P6T6 WS RevolutionCompare specs

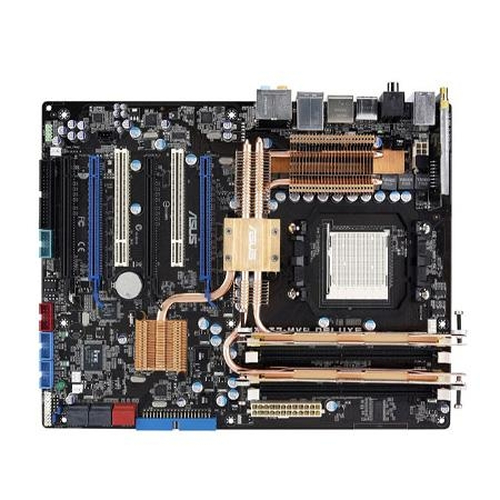

- ASUS P6T Socket B (LGA 1366) ATX vsASUS M3A32-MVP Deluxe/WiFi-AP MotherboardCompare specs

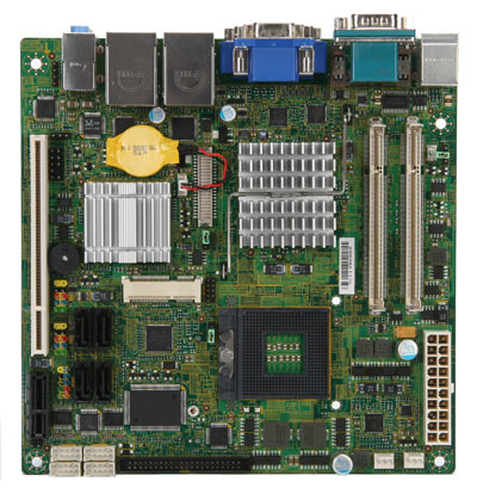

- ASUS P6T Socket B (LGA 1366) ATX vsMSI Fuzzy CX700DCompare specs

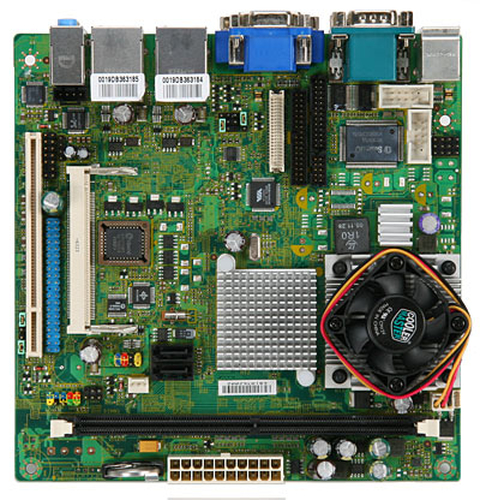

- ASUS P6T Socket B (LGA 1366) ATX vsMSI IM-GM45 Socket 479 mini ITXCompare specs
- ASUS P6T Socket B (LGA 1366) ATX vsGIGABYTE GA-EX58-UD4P motherboard Socket B (LGA 1366) ATXCompare specs

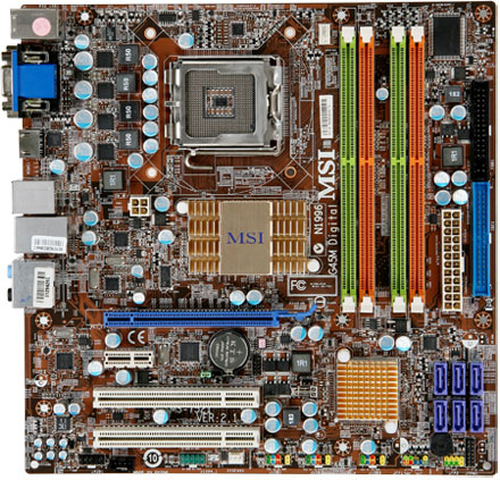

- ASUS P6T Socket B (LGA 1366) ATX vsMSI G45M DigitalCompare specs
