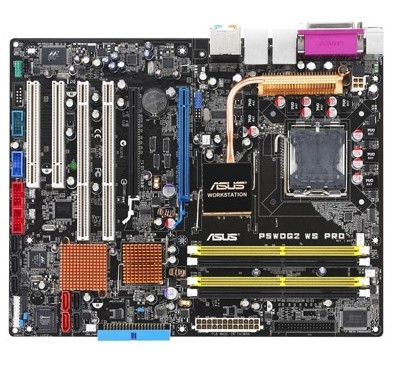

ASUS P5WDG2 WS Professional
Model P5WDG2 WS ProfessionalPart no. P5WDG2 WS PROFESSIONAL
36 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Networking featuresDual Gigabit LAN
- Motherboard form factorATX
- Expansion slots2x PCI-E x16 2x PCI-X 2x PCI 2.2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Networking features
- Dual Gigabit LAN
- Motherboard form factor
- ATX
- Expansion slots
- 2x PCI-E x16 2x PCI-X 2x PCI 2.2
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5WDG2 WS Professional
- Part numbers
- P5WDG2 WS PROFESSIONAL, P5WDG2-WS PROF?REFUR
- Also known as
- ASUS P5WDG2 WS Professional LGA 775 (Socket T) ATX
Specifications
36 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit LAN |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | ADI AD1988B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI-E x16 2x PCI-X 2x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | Marvell 88SE614x |
| Floppy disk drive connector | Yes |
| Special features | AI Nap AI Gear My Logo 2 ASUS AI NOS AI Overclocking AI Clock Skew ASUS PEG Link Hyper Path 3 ASUS BIOS Profile ASUS C.P.R. ASUS AI Booster ASUS AI NET2 CrashFree BIOS 3 EZ Flash 2 Q-Connector ASUS AI Quiet |
| Manageability features | WOL PME, WOR PME, PXE, AI NET |
