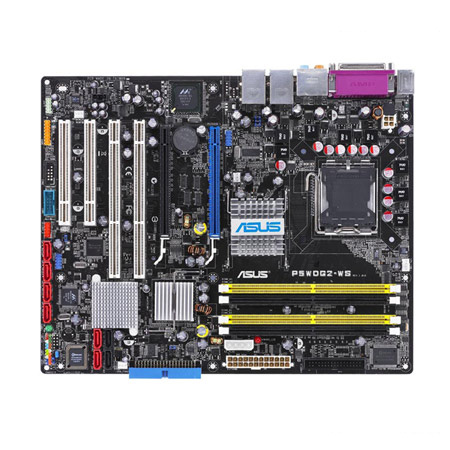

ASUS P5WDG2 i975x/pci-e
Model P5WDG2 i975x/pci-ePart no. 90-MBB3R0-G0EAY
36 specifications
- Processor manufacturerIntel
- Number of memory slots4
- Parallel processing technology supportNot supported
- Motherboard form factorATX
- BIOS memory size64 Mbit
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- Parallel processing technology support
- Not supported
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5WDG2 i975x/pci-e
- Part number
- 90-MBB3R0-G0EAY
- Also known as
- ASUS P5WDG2 i975x/pci-e LGA 775 (Socket T) ATX
Specifications
36 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E8066/8062 PCI-E Dual Gb LAN & WiFi AP |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC882 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI-E x 16 2 x PCI-X 2 x PCI 2.2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | ASUS PC Probe II RAID utility Symantec NIS 2005 Adobe Acrobat Reader 7.0 Microsoft Direct X 9.0C |
Other features
| Specification | Value |
|---|---|
| EZ plug connector | Yes |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
| Manageability features | WOL by PME, WOR by PME, PXE, AI NET, Chassis Intrusion |
