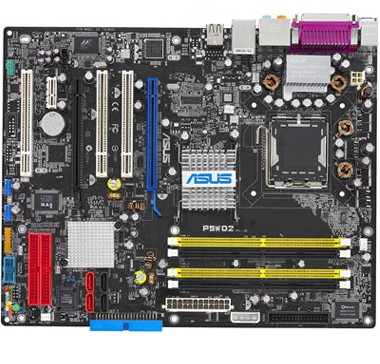

ASUS P5WD2 AiLife Series Motherboard
Model P5WD2 AiLife Series MotherboardPart no. P5WD2EAN 4719543132869
14 specifications
- Processor manufacturerIntel
- Maximum internal memory8 GB
- RAID levels0, 1, 10
- Motherboard form factorATX
- BIOS memory size64 Mbit
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 8 GB
- RAID levels
- 0, 1, 10
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5WD2 AiLife Series Motherboard
- Part number
- P5WD2
- EAN / UPC
- 4719543132869
- Also known as
- ASUS P5WD2 AiLife Series Motherboard LGA 775 (Socket T) ATX
Specifications
14 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® D |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E8001 Gigabit LAN Controller |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC882 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1x PCI Express x16 slot 1x PCI-E graphics slot (max. x4 mode) 1x PCI Express x1 3x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Drivers ASUS PC Probe 2 ASUS LiveUpdate Utility Anti-virus software (OEM version) |
Other features
| Specification | Value |
|---|---|
| I/O ports | Back panel: 1x Parallel 1x Coaxial S/PDIF Output 1x PS/2 Keyboard 1x PS/2 Mouse 1x RJ45 4x USB 2.0/1.1 8-Channel Audio I/O Internal connectors: 2x USB 2.0 1x COM 1x GAME/MIDI CPU/2*Chassis/Power Fan Front panel Audio Chassis Intrusion CD audio-in 24-pin EATX Power 4-pin ASUS EZ Plug 2x 4-pin EATX12V |
What people say
Reviews & ratings
ASUS P5WD2 AiLife Series Motherboard
No reviews yet
Be the first to tell others how ASUS P5WD2 AiLife Series Motherboard works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS P5WD2 AiLife Series Motherboard
All motherboard comparisons- ASUS P5WD2 AiLife Series Motherboard vsASUS MB ASUS INTEL S478 P4P800-X ATXCompare specs
- ASUS P5WD2 AiLife Series Motherboard vsASUS A7V400-MX SECompare specs
- ASUS P5WD2 AiLife Series Motherboard vsASUS Desktop Board P5CR-LS RetailCompare specs
- ASUS P5WD2 AiLife Series Motherboard vsASUS P5gd2-x Intel® 915P Express LGA 775 (Socket T) ATXCompare specs
- ASUS P5WD2 AiLife Series Motherboard vsGIGABYTE K8NP S939 nVIDIA 4 SLI DDR400Compare specs

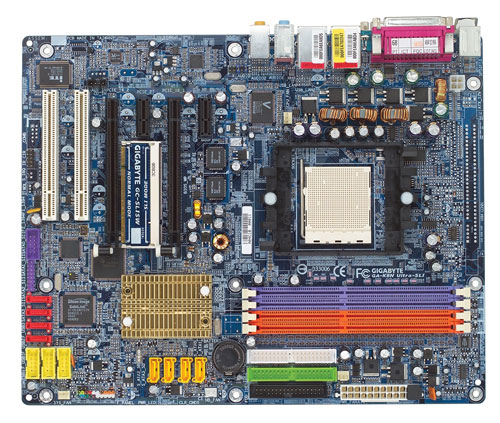

- ASUS P5WD2 AiLife Series Motherboard vsGIGABYTE GA-K8N Ultra-SLICompare specs
