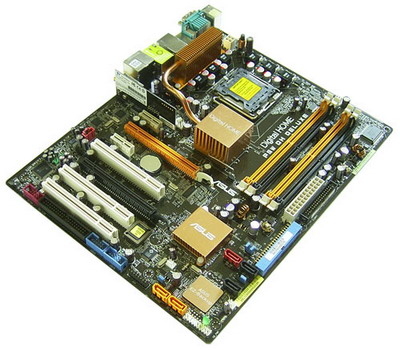

ASUS P5W DH Deluxe Digital Home Series
Model P5W DH Deluxe Digital Home SeriesPart no. P5W DH DELUXE/WIFI-AP
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5W DH Deluxe Digital Home Series
- Part number
- P5W DH DELUXE/WIFI-AP
- Also known as
- ASUS P5W DH Deluxe Digital Home Series LGA 775 (Socket T) ATX
Specifications
28 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Flash memory | 8 MB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Azalia Digital Header (ADH) connector | 1 |
| EZ plug connector | Yes |
| Floppy disk drive connector | Yes |
