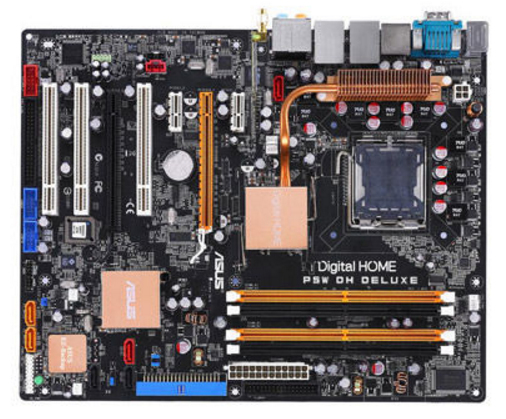

ASUS P5W DH Deluxe
Model P5W DH DeluxePart no. 90-MBB2X0-G0EAYZEAN 610839138302
37 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5
- Motherboard form factorATX
- BIOS memory size64 Mbit
- Width245 mm
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5
- Motherboard form factor
- ATX
- BIOS memory size
- 64 Mbit
- Width
- 245 mm
- Brand
- ASUS
- Category
- Motherboard
- Model
- P5W DH Deluxe
- Part numbers
- 90-MBB2X0-G0EAYZ, P5W DH DELUXE?REFURB, 90-MBB2X0-G0EAY, P5W DHDELUXE
- EAN / UPC
- 610839138302, 610839138319, 4719543138304
- Also known as
- ASUS P5W DH Deluxe LGA 775 (Socket T) ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | No |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| Modem (RJ-11) ports | 0 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI-E x 16, 2 x PCI-E x 1, 3 x PCI. |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | SATA II |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | Yes |
